Selecting the right tracked robot chassis determines the baseline reliability, mobility, and time-to-market of your final robotic product. The kinetic base you choose dictates how well your system performs in the real world. Off-the-shelf consumer bases frequently fail in commercial applications. They suffer from closed communication protocols. They offer inadequate payload capacities. They lack critical supply chain consistency. We often see promising projects stall. Cheap consumer bases simply cannot withstand harsh industrial deployments. They lack the modularity required for complex sensory payloads.
To successfully scale field robotics across agriculture, inspection, or defense, OEMs must evaluate chassis partners deeply. Look beyond raw spec sheets. You must prioritize mechanical adaptability and software transparency. You need verifiable manufacturing scale. Evaluating these factors ensures your autonomous software has a reliable physical platform. You will learn how to assess structural components effectively. We will cover the reality of open software integration. You will discover how to evaluate vendor supply chains to secure your production lines.
You must define how chassis selection directly impacts final product viability. Ground clearance strictly dictates terrain limits. A low clearance works fine on warehouse concrete. It fails instantly in muddy agricultural fields. Footprint dimensions dictate transportability. You must fit the robot inside standard transport vehicles or shipping crates. We evaluate these physical dimensions early. This ensures the final product meets end-user expectations. Every physical constraint influences your operational success. If the base cannot clear standard obstacles, your autonomous navigation software cannot save the mission.

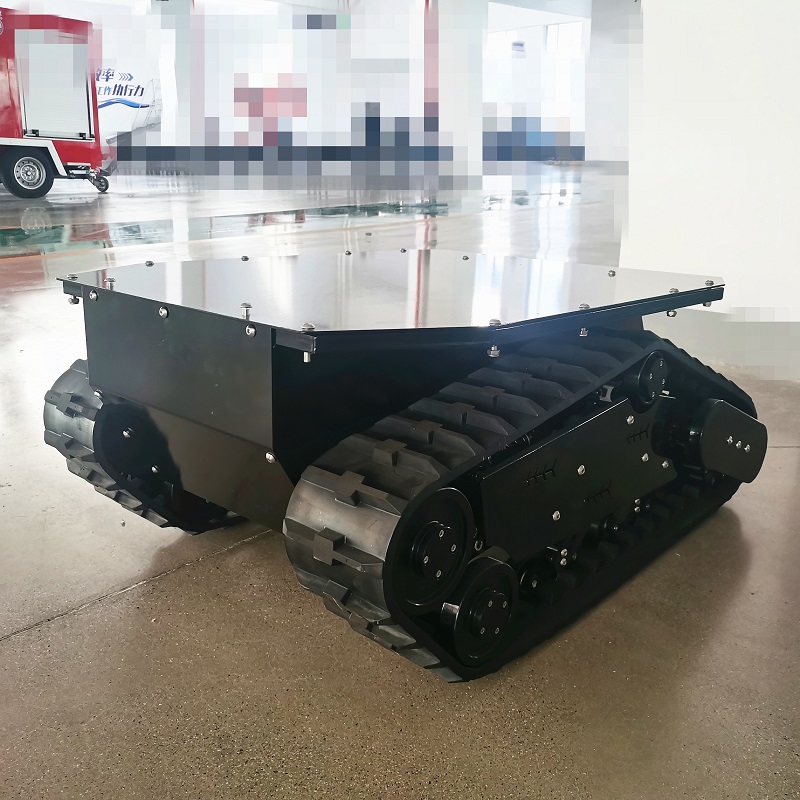

Analyze the heavy hidden costs of developing a custom tracked base in-house. Mechanical R&D demands significant engineering hours. Custom tooling requires massive upfront capital investment. Iterative physical testing drains your project runway. Conversely, sourcing from a specialized Tracked Robot Chassis Manufacturer accelerates your development cycle. They absorb the mechanical R&D burden completely. You avoid reinventing the wheel. This strategic delegation allows your team to focus exclusively on proprietary payloads. You can dedicate your budget to refining autonomous navigation algorithms instead of metal fabrication.
Acknowledge a very common engineering misconception. A chassis is never just a passive structural frame. It acts as the dynamic kinetic foundation for your entire robotic system. It strictly dictates power draw under heavy loads. It determines sensor stability during rough terrain traversal. Structural fatigue over time depends entirely on this base frame. You must treat the chassis as an active, critical component. Its physical performance directly affects camera feeds. It impacts LIDAR point cloud accuracy. It governs battery drain rates during field deployments.

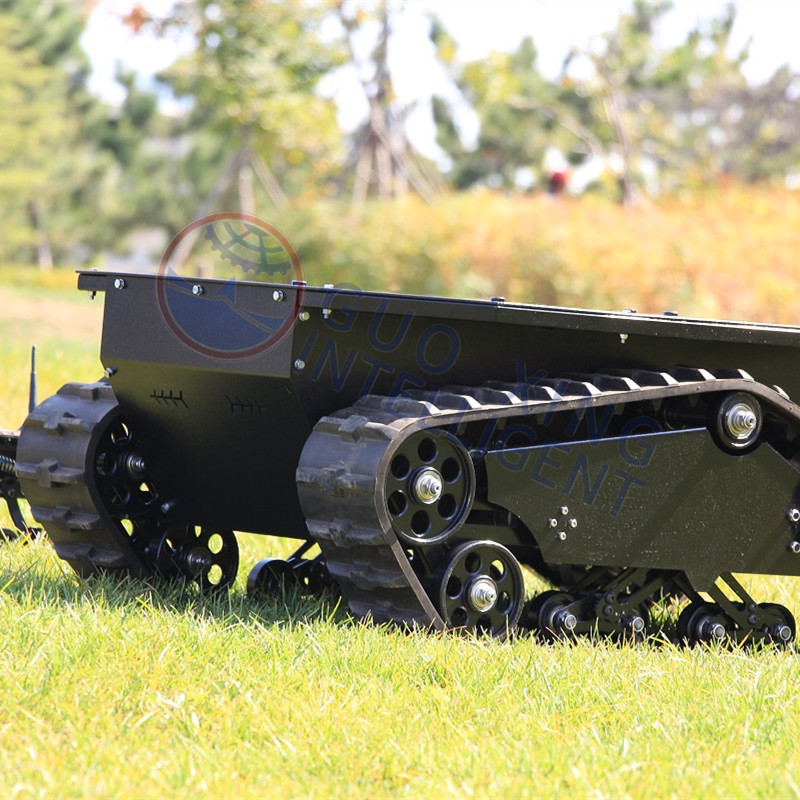

You must compare track materials carefully based on your target environment. Kevlar-reinforced rubber provides excellent traction. It prevents floor damage in indoor or mixed-use facilities. Steel links offer unmatched durability for rugged outdoor operations. However, steel tracks can destroy concrete surfaces. Steel also adds significant weight to the platform. Require verifiable data on suspension types from your vendor. Independent swing arms improve uneven terrain traversal greatly. A robust Christie or Christie-Mathilda suspension ensures sensor payload stability. If your chassis shakes excessively, your mapping sensors will fail.
| Track Material | Primary Environments | Traction Profile | Impact on Concrete/Indoor Floors |
|---|---|---|---|
| Kevlar-Reinforced Rubber | Agriculture, Inspection, Mixed-Use | High grip on dry/wet flat surfaces | Zero to minimal damage |
| Full Steel Links | Construction, Defense, Heavy Debris | Maximum grip in mud/loose soil | High damage risk (scratching/gouging) |
| Rubber-Padded Steel | Urban Defense, Industrial Yards | Balanced grip across varied terrain | Moderate (pads protect surfaces) |
Evaluate nominal versus peak payload capacities strictly. Nominal capacity represents safe continuous operation limits. Peak capacity handles brief stress events only. Never design your custom payload to run at peak capacity continuously. Assess the motor and gearbox pairings deeply. Brushless DC motors offer excellent efficiency. Servo motors provide highly precise control feedback. Match these motors with high-torque gearboxes for low-speed operations. Heavy field loads demand continuous high torque. You must ensure the drive system avoids overheating during prolonged deployments.
Scrutinize environmental Ingress Protection (IP) ratings thoroughly. IP65 protects against heavy dust and light water jets. IP67 allows temporary submersion in shallow water. Look very closely at the lower deck housing. This specific area holds drive motors and motor controllers. It faces the absolute worst environmental abuse. Puddles, mud, and abrasive dust constantly assault the lower deck. Proper factory sealing prevents catastrophic electrical failures in the field. Demand testing documentation proving these IP claims.
Assess the availability of standard mechanical mounting options. Look for standard T-slot rails across the upper deck. Demand pre-drilled hardpoints for sensor masts. Modular mounting plates save countless integration hours for your engineering team. You need easy ways to attach LIDAR units and robotic arms. Review center of gravity (CoG) parameters carefully. Adding heavy custom payloads alters the natural CoG significantly. Calculate maximum slope angles after payload integration. A high CoG leads to severe tipping hazards on steep inclines. A modular OEM tracked robot chassis simplifies these mechanical adjustments directly. It provides clear documentation on payload volume limits.
Determine the platform's readiness for advanced software frameworks. You absolutely need ROS or ROS2 compatibility. Open APIs and SDK availability are non-negotiable for modern robotics. Highlight the immense risk of closed proprietary controllers. "Black box" controllers lock you into restrictive ecosystems. They prevent custom behavior modifications. A true commercial base provides transparent CAN bus or serial communication. This ensures seamless upper-level navigation integration. Your autonomous software must communicate freely with the low-level motor drivers.
Evaluate onboard power management systems thoroughly. A smart Battery Management System (BMS) prevents catastrophic battery failures. It protects against dangerous overcharging. It prevents deep discharging during extended missions. Check for auxiliary voltage outputs on the power distribution board. You need reliable 5V, 12V, 24V, or 48V rails. These isolated rails power your sensitive sensors safely. Assess hot-swappable battery support. Hot-swapping minimizes field downtime during continuous operations. Reliable power distribution prevents system brownouts. Brownouts often occur when drive motors draw sudden peak current.
Investigate the manufacturer's reliance on secondary suppliers. Who builds their motors? Where do they source their battery cells? A manufacturer dependent on obscure suppliers poses severe production risks. Component shortages can halt your final production line entirely. Demand transparency on component end-of-life (EOL) management. You must know exactly when a motor driver chip will phase out. This transparency helps avoid sudden mid-production redesigns. Stable vendor supply chains ensure consistent manufacturing output.
Look for recognized industry compliance certifications. ISO 9001 certifications indicate mature quality management systems. Ensure CE or FCC compliance on all integrated electronic components. This prevents regulatory roadblocks when you sell your final robotic product globally. Ask for documented physical testing protocols. We always look for continuous vibration test results. Drop test data reveals true structural integrity. Thermal chamber testing proves reliability in extreme weather temperatures. Do not accept shiny marketing claims without hard testing documentation.
Evaluate platform modification capabilities. You might need to adjust standard base dimensions. Can they modify width, length, or ground clearance easily? Assess how these specific requests affect your budget. Some dimensional changes trigger exorbitant Non-Recurring Engineering (NRE) fees. Look for a partner who balances standard modularity with flexible engineering. Minor bracket modifications should never require a completely new chassis design. Flexible manufacturing capabilities protect your initial prototype budget.
Follow a structured approach to vendor selection. Avoid choosing partners based solely on a visually appealing spec sheet. You need a systematic way to validate their claims.
Create a weighted scoring matrix to finalize your decision. Prioritize protocol openness heavily. Assign high points for physical suspension performance. Value vendor communication speed. Score each shortlisted manufacturer objectively using this chart approach. This matrix removes emotional bias from your sourcing decision.
| Evaluation Category | Weight (%) | Key Metric to Score (1-10) |
|---|---|---|
| Open-Architecture Control | 30% | Quality of ROS2 packages, transparent CAN bus access. |
| Mobility & Suspension | 25% | Empirical test data on vibration dampening and obstacle clearance. |
| Manufacturing Scalability | 20% | ISO certifications, EOL parts management, and supply chain transparency. |
| Technical Support SLA | 15% | Response time during the initial prototype integration phase. |
| Commercial Flexibility | 10% | Reasonable NRE fees for minor mechanical modifications and low MOQs. |
Partnering with the right tracked base manufacturer shifts the engineering burden away from locomotion. This strategic delegation allows your team to focus entirely on autonomous software and specialized payloads. You accelerate your time-to-market significantly.
Base your final vendor decision on hard data and proven engineering support. A reliable tracked chassis ensures your final robotic solution succeeds in the field. Choose a partner who actively accelerates your development timeline.
A: Standard lead times vary based on the complexity of your request. Minor modifications, such as custom mounting holes or altered bracket placements, typically take 4 to 8 weeks. If your project requires heavy structural changes, custom motor integration, or unique dimensions, expect lead times of 12 weeks or more.
A: Yes, provided it is designed for commercial use. Basic RC-level chassis lack the necessary feedback loops. Industrial platforms feature transparent CAN bus communication and high-resolution encoder feedback. These elements are absolutely required to integrate reliably with advanced ROS and ROS2 navigation stacks.
A: Most reputable manufacturers offer a standard 12-month warranty covering structural and electronic defects. They supply spare parts like tracks, motors, and controllers directly to you. However, as the OEM integrating the final product, you are typically required to manage the frontline warranty and support for your end-users.
A: MOQ depends heavily on the manufacturing processes required for your modifications. Custom track molds, unique motor windings, and specific CNC tooling setup costs drive up the MOQ. Standardized chassis platforms with minor bolt-on modifications generally offer much lower or even zero MOQ requirements.
