Imagine a massive heavy-duty vehicle grinding to a sudden halt across challenging terrain. A thrown track in the field causes severe downtime, serious safety hazards, and highly complex recovery operations. You face immense challenges trying to reset heavy components far from fully equipped maintenance bays. Continuous track systems operate under massive lateral and rotational stress. They require highly precise mechanical synchronization to remain securely seated on the undercarriage.

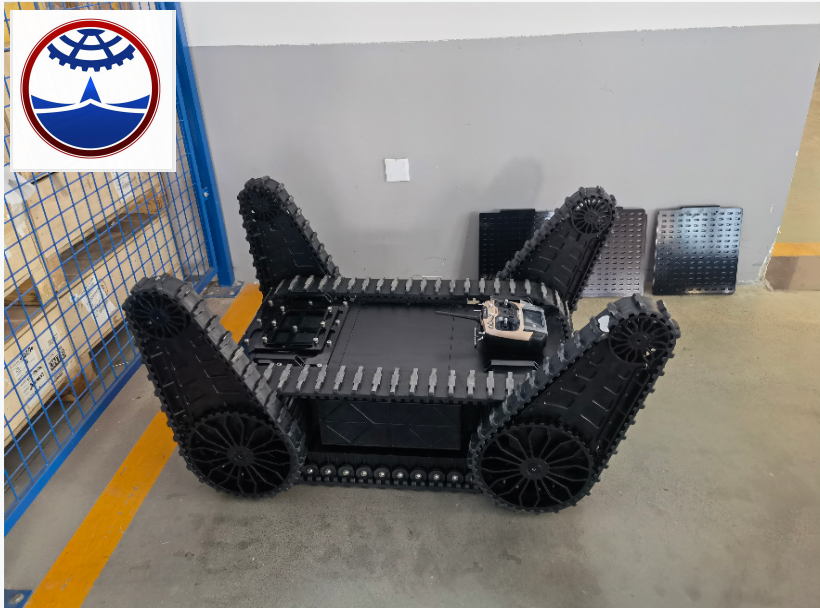

Understanding track retention mechanics remains critical for heavy machinery operators, fleet managers, and engineers. They rely on this specialized knowledge when evaluating a reliable tracks chassis for commercial or industrial deployment. You will soon discover the exact physical mechanisms holding tracks firmly in place. We will also explore crucial tensioning systems, common failure modes, and essential criteria for choosing the right materials to ensure maximum operational uptime.
Mechanical Retention: Tank treads stay on through a combination of center guide horns (or teeth), continuous tension from idler wheels, and engagement with the drive sprocket.
Tension is Critical: Without proper, continuous track tensioning (hydraulic or mechanical), even the most robust tracks chassis will experience de-tracking.
Application Dictates Material: The choice between rubber continuous tracks and steel treads drastically alters evaluation criteria for ground pressure, maintenance intervals, and terrain suitability.
Operational Discipline: Lateral forces on steep inclines and aggressive pivoting in soft substrates are the primary causes of track failure; hardware limitations must be matched with operator training.
Guide horns serve as the primary physical barrier against lateral track movement. They consist of inward-facing teeth integrated directly into the track links. These robust protrusions pass continuously between dual road wheels during operation. This interlocking action physically prevents the track from sliding sideways off the chassis. Engineers design these center guides to withstand immense shearing forces. If a vehicle traverses uneven ground, the guide horns catch against the inner rim of the road wheels, forcing the track to stay perfectly aligned.
The drive sprocket acts as the heartbeat of the entire undercarriage system. Positioned typically at the rear of the vehicle, its heavy-duty teeth mesh directly with the gaps in the track links. It provides vital forward propulsion while maintaining strict structural alignment. As the sprocket rotates, it aggressively pulls the track links upward and feeds them over the top rollers. This continuous pulling action keeps the upper run of the track taut. It prevents slack from accumulating where it could derail the system.
Road wheels support the entire weight of the heavy machinery. They pin the bottom run of the track firmly against the ground. Manufacturers use overlapping or evenly spaced road wheel configurations depending on load requirements. This continuous downward pressure traps the track securely in place under the vehicle's massive weight. By distributing this load across multiple contact points, they reduce localized ground pressure. This distribution ensures the track conforms to the terrain without twisting or buckling outward.
You will find the idler wheel located at the extreme opposite end of the drive sprocket. It remains entirely unpowered. Its primary function involves guiding the track back around the front of the chassis. It establishes and maintains the operational geometry of the entire loop. A well-designed idler wheel absorbs direct frontal impacts from rocks and trenches. It smoothly transitions the track from the ground return back into the upper carrier rollers, completing the mechanical cycle seamlessly.
Proper track tension serves as the primary preventative measure against de-tracking. It acts as the first line of defense in severe environments. A loose track quickly sags. It then slips completely off the guide horns during tight turns. Conversely, an overly tight track accelerates component wear, destroys bearings, and drains engine power. Operators must maintain a perfect balance. They ensure the track remains flexible enough to absorb shocks but tight enough to stay securely seated on the undercarriage.
Modern undercarriages utilize different mechanisms to push the idler wheel forward and maintain track tension. Fleet managers must understand the distinct advantages of each system. We can compare the two most common standard tensioning mechanisms used today.
Tensioning Mechanisms Comparison | |||
System Type | Adjustment Method | Reliability Profile | Maintenance Demands |
|---|---|---|---|
Grease Cylinder | Manual pumping of heavy grease to extend a piston. | Highly reliable, simple mechanical design, fewer failure points. | Requires frequent manual checks; operator must carry a grease gun. |
Hydraulic Tensioner | Uses active fluid pressure from the vehicle's main systems. | Excellent dynamic response, auto-adjusts to varying terrain loads. | Prone to seal leaks; requires specialized fluid maintenance. |
Mechanical Spring | Heavy-duty coiled steel springs applying constant force. | Fail-safe design, provides crucial shock absorption (recoil). | Springs can fatigue over years of extreme stress cycles. |
The implementation of these systems introduces a significant maintenance burden. Fleet managers must account for rigorous daily tension checks. High temperature fluctuations cause metal and rubber components to expand or contract, altering track tension dynamically. Heavy debris often packs into the undercarriage, artificially tightening the track to dangerous levels. You must train operators to visually inspect track sag every single morning. They must clean out mud and rocks before initiating any movement to protect the internal seals and guides.
Neutral steering occurs when a vehicle attempts to turn in place by running one track forward and the other backward. This applies catastrophic lateral stress on high-friction surfaces like dry dirt or solid rock. The track strongly resists sliding laterally across the rough ground. Meanwhile, the drive sprocket continues pulling relentlessly. This conflicting force often pries the treads violently off the road wheels. We recommend executing gradual, moving turns whenever operating on highly abrasive or high-friction substrates.
Driving parallel to a steep incline introduces severe gravity-induced lateral loads. The entire weight of the machine pushes aggressively against the downhill track guides. Gravity constantly attempts to pull the track away from the chassis. If the slope exceeds the design parameters of the center guides, the track simply rolls off the bottom wheels. Operators must approach steep gradients head-on rather than traversing across them. This basic operational discipline prevents unexpected de-tracking in dangerous hilly environments.
Debris ingestion remains a constant threat in forestry, mining, and winter operations. Rocks, thick ice, or hardening mud accumulate rapidly between the drive sprocket and the track links. As this material builds up, it dramatically increases the effective circumference of the sprocket. This forces the track outward and stretches it beyond its mechanical limits. The tension cycle breaks entirely. The track then slips off the sprocket teeth, leaving the vehicle completely immobilized in the field.
These failure modes directly trigger massive operational costs and project delays. Every hour a machine sits immobilized represents lost revenue. You must dispatch specialized repair crews and heavy lifting equipment to reseat a thrown track. This highlights the absolute necessity for chassis designs featuring advanced self-cleaning geometries. Investing in heavy-duty track guides and robust undercarriage armor significantly reduces downtime. Smart procurement decisions directly protect your bottom line by minimizing these highly disruptive field failures.
Best Practice: Always clear the undercarriage of frozen mud before parking equipment overnight in freezing temperatures.
Common Mistake: Relying on neutral steering to reposition heavy equipment on dry asphalt or concrete surfaces.
Best Practice: Train operators to listen for the distinct "popping" sound of track links riding up on sprocket teeth.

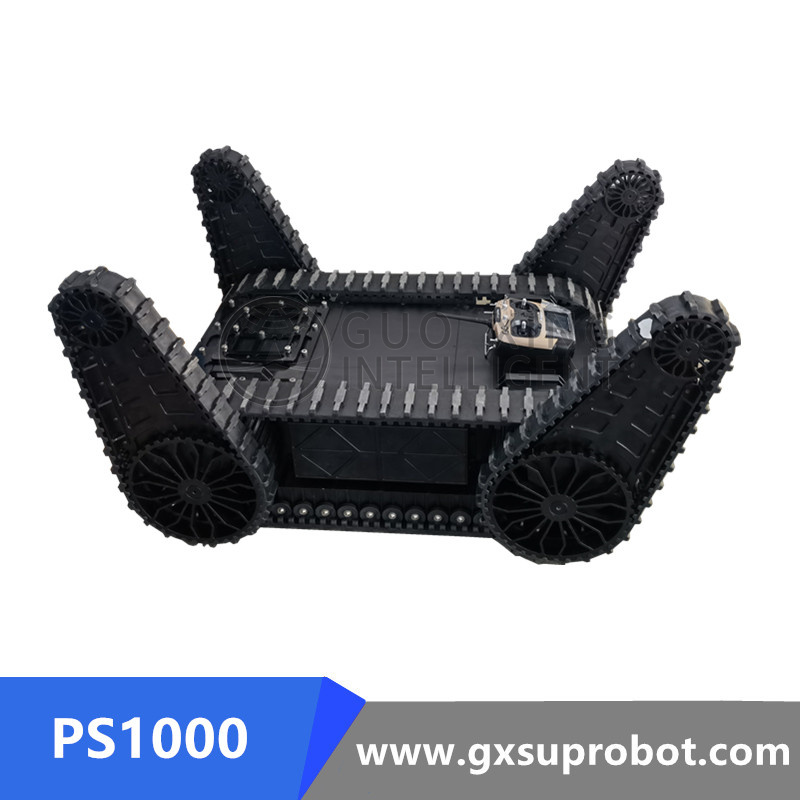

Steel tracks represent the ultimate solution for severe-duty industrial and military applications. They feature interlocking metal plates designed to withstand extreme punishment.
Strengths: They offer maximum durability and unmatched crush resistance. They provide superior traction in severe off-road environments like quarries, demolition sites, and dense forests. They easily crush sharp rocks and rebar without sustaining structural damage.
Drawbacks: They carry an exceptionally high weight penalty. They cause severe road damage, which requires strict compliance checks and flatbed transport for public road movement. They also transmit significant vibration into the cabin, increasing operator fatigue over long shifts.
Rubber continuous tracks utilize a thick, molded rubber loop embedded with high-tensile steel cables. They dominate the compact construction and agricultural sectors.
Strengths: They generate significantly lower noise levels. They cause minimal damage to paved roads and sensitive landscapes. They provide a lighter total chassis weight. They deliver superior flotation and mobility on extremely soft surfaces like deep snow, sand, and wet mud.
Drawbacks: They remain highly susceptible to tearing and chunking when exposed to sharp debris or jagged concrete. They carry a higher risk of stretch-induced de-tracking if they lack heavy-duty internal steel reinforcement.
Choosing the right material demands a structured evaluation framework. You must assess your specific operational realities before finalizing a procurement decision.
Analyze the Operating Environment: Identify the primary ground conditions. Use steel for jagged, abrasive terrain. Select rubber for turf, asphalt, or deep mud.
Evaluate Load-Bearing Requirements: Calculate the maximum payload. Steel supports substantially heavier machine weights without stretching. Rubber limits maximum viable vehicle tonnage.
Assess Maintenance Capabilities: Determine your field repair limits. You can replace individual broken steel links on-site. Conversely, a snapped rubber track requires replacing the entire continuous loop.
Determine Transport Logistics: Consider how often the machine moves between sites. Rubber tracks allow driving short distances on public roads. Steel tracks demand constant trailer loading and unloading.
Integrating the correct tank treads into your fleet directly dictates your long-term operational success and maintenance cycles.
You must evaluate whether the undercarriage system requires expensive custom fabrication. Many modern systems use highly modular, off-the-shelf components. This modularity ensures easier sourcing of replacement parts down the line. A standardized architecture allows fleet managers to scale their operations quickly. It reduces the need to stockpile obscure, proprietary parts. We highly recommend selecting designs that leverage widely available industry-standard bolt patterns and roller dimensions.
Examine the physical blueprint of the undercarriage very closely. Look for robust center-guide designs featuring hardened steel wear surfaces. Inspect the idler recoil mechanisms. They must feature heavy-duty shock absorption capabilities to handle sudden impacts with large boulders. A rigid undercarriage transfers all impact energy directly into the chassis frame, leading to structural cracking. A properly engineered recoil spring absorbs these shock loads, protecting both the track and the vehicle frame.
You must thoroughly assess Original Equipment Manufacturers (OEMs) before signing a purchase order. Review their warranty terms specifically regarding undercarriage wear and tear. Ensure they guarantee rapid availability of replacement parts. Demand transparent load-rating documentation and material certifications. A trustworthy vendor provides clear maintenance schedules and openly discusses the structural limitations of their equipment. Avoid manufacturers who promise indestructible tracks without providing hard engineering data.
We strongly recommend establishing a rigorous pilot test program. Deploy a single unit into your primary operating environment. Monitor its track retention performance over several weeks of severe use. Track the frequency of tension adjustments required by the operators. Audit the wear patterns on the guide horns and drive sprockets. Only after validating this field data should you commit to a fleet-wide adoption strategy.
Tank treads stay securely attached through a highly dynamic, interconnected system rather than a single fastener. Center guide horns physically block lateral movement, while active tensioning systems eliminate dangerous slack. Proper weight distribution ensures the track remains firmly pinned to the ground. Preventing catastrophic de-tracking requires aligning your specific chassis specifications directly with your operational environment. You must choose the correct materials and tensioning mechanisms to match your terrain.
To ensure maximum reliability moving forward, follow these action-oriented next steps:
Train all heavy equipment operators on the dangers of high-friction neutral steering.
Implement strict daily maintenance checklists to clear debris and verify proper track tension.
Consult with OEM undercarriage engineers to audit your specific payload requirements prior to final procurement.
Conduct environmental pilot tests to confirm whether steel or rubber tracks best suit your job sites.
A: Tracks typically derail (or "throw") due to improper track tension, accumulation of debris in the undercarriage, or excessive lateral force caused by turning sharply on uneven or sloping terrain.
A: Most modern systems use a grease cylinder or hydraulic tensioner connected to the idler wheel. Pumping grease into the cylinder pushes the idler wheel forward, tightening the tank treads.
A: Not necessarily. Rubber tracks offer excellent reliability for low-impact, soft-ground, or snow applications, but they stretch over time and require more frequent tension adjustments compared to interlocking steel links.
A: No. Once a track is thrown, the vehicle loses propulsion and steering on that side. Continuing to run the drive sprocket without the track can cause catastrophic damage to the undercarriage components.
