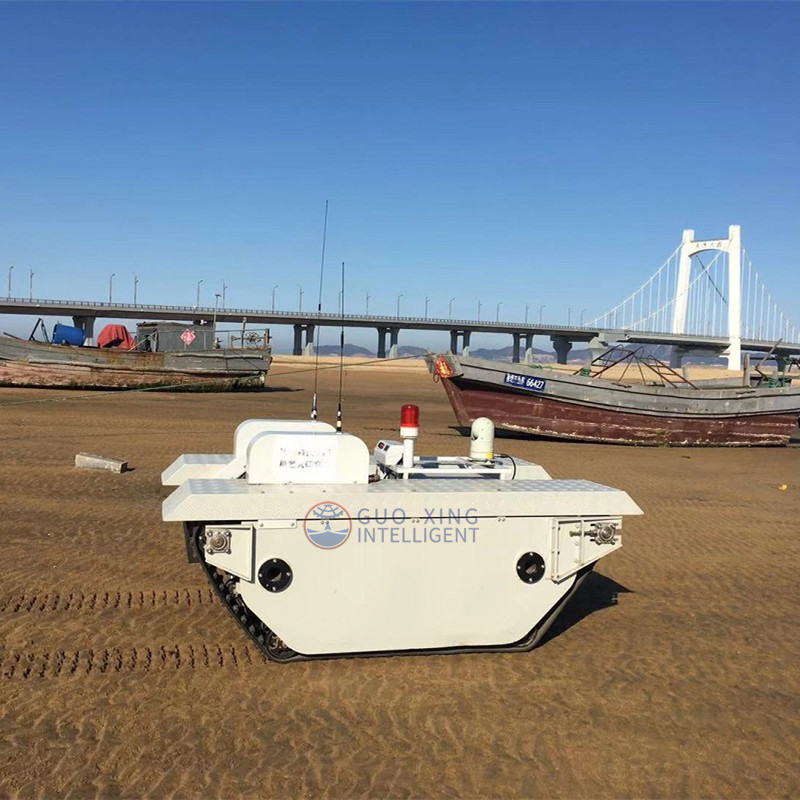

Curiosity often surrounds the iconic shape of heavy-duty vehicles. Have you ever wondered why designers avoid flat layouts and engineer vehicles featuring angled ends? This design choice stems from a complex intersection of historical necessity and mechanical ingenuity. For engineering, robotics, and heavy-machinery procurement teams, selecting the right mobility base is critical. Choosing between a trapezoidal profile, a flat oval track, or a wheeled platform dictates a vehicle's approach angle, obstacle-climbing capacity, and lifecycle maintenance profile. An incorrect choice can leave expensive assets stranded or cause skyrocketing mechanical failures in the field. We will deconstruct the physics behind the trapezoidal design and compare it against alternative continuous topologies. You will also learn a practical framework for evaluating and shortlisting a mobility system for commercial or industrial applications. By understanding these mechanical trade-offs, you can confidently match your operational environment to the perfect chassis foundation.
Obstacle Clearance: The trapezoidal shape features elevated front idlers and rear drive sprockets, specifically engineered to create an aggressive angle of approach for climbing vertical obstacles rather than impacting them.
Traction vs. Efficiency: While trapezoidal tank treads maximize ground contact area and minimize ground pressure (PSI), they introduce significant drivetrain friction compared to wheeled or oval-track alternatives.
Chassis Selection: Procurement and engineering decisions must weigh the superior terrain adaptability of a trapezoidal tracks chassis against higher maintenance overhead, tensioning risks, and reduced top speeds.
Risk Mitigation: Real-world implementations require strict evaluation of tensioning mechanisms, material durability, and derailment ("thrown track") vulnerabilities.
Engineers do not shape heavy machinery bases by accident. The distinctive trapezoidal geometry serves highly specific physical functions. They allow vehicles to navigate environments where standard wheels fail instantly. We can trace this success back to three fundamental mechanical advantages.
Vertical obstacles present the greatest challenge to any off-road vehicle. A standard wheel crashing into a steep wall loses all forward momentum. Raising the front idler wheel changes the physics of this encounter. This elevation creates a sloping front profile. The angled track acts as a dynamic ramp. Instead of impacting the wall, the tread grips the top edge of the trench or obstacle. It then pulls the entire vehicle upward and forward. This aggressive angle of approach separates highly mobile systems from basic construction equipment.
Soft terrains quickly swallow heavy machinery. Mud, snow, and loose sand require specialized weight management. The flat bottom section of the trapezoid creates a massive continuous contact patch. This design spreads the vehicle weight across a huge surface area. It drastically reduces ground pressure. In many cases, the pounds per square inch (PSI) drop to levels lower than a human footprint. You can drive a heavily armored vehicle over soft bogs without sinking. The continuous contact patch effectively floats the machine over treacherous environments.
Power transmission requires robust protection. The drive sprocket transfers engine torque directly to the track. Placing this vital component near the ground exposes it to catastrophic damage. Rocks, debris, and sudden impacts destroy low-hanging sprockets. Elevating the rear drive sprocket safely isolates the powertrain. The trapezoidal shape naturally lifts this component away from direct ground contact. It shields the gears from immediate physical shock. You maintain forward momentum because the most delicate moving parts remain safely elevated above the friction zone.
Every engineering project demands a rigorous component comparison. You must weigh mobility against mechanical simplicity. No single base platform solves every operational challenge. We categorize these mobility solutions into four distinct groups. Understanding their primary strengths helps prevent costly procurement mistakes.
System Category | Ideal Application | Primary Strength | Notable Trade-off |
|---|---|---|---|
Trapezoidal Tracks | Tanks, High-Mobility Vehicles | Aggressive obstacle climbing | High complexity and tensioning needs |
Flat/Oval Tracks | Excavators, Cranes | Maximum lifting stability | Poor obstacle clearance, very slow |
Quad-Tread Systems | Robotics, Disaster Relief | Independent articulation | Exponentially higher failure points |
Wheeled Chassis | Paved Roads, Logistics | High speed, fuel efficiency | Catastrophic failure in soft mud |

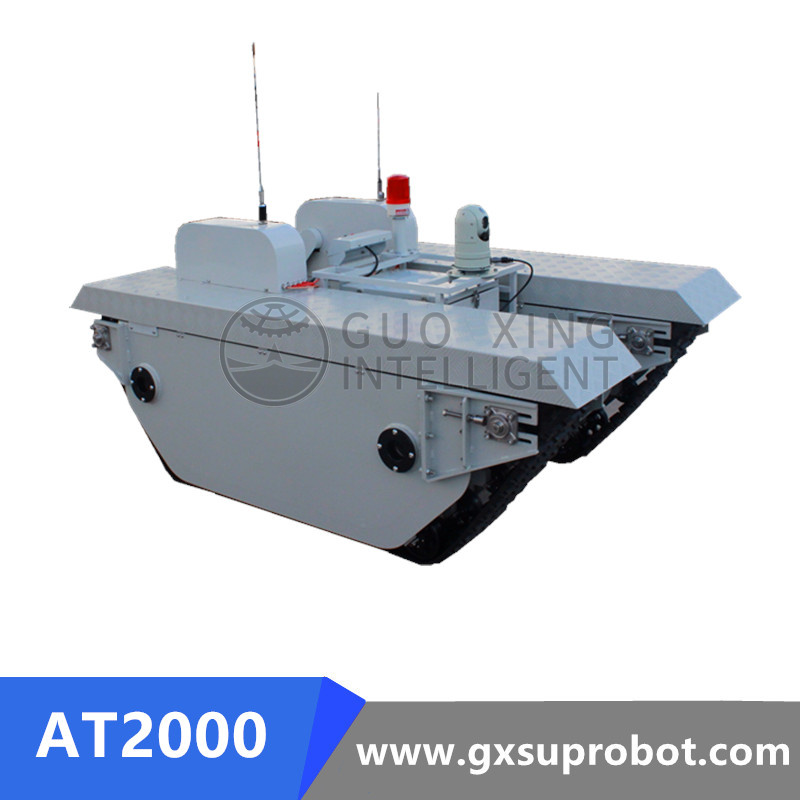

DIY-friendly tanks and high-mobility exploration vehicles rely on this profile. A trapezoidal tracks chassis delivers unmatched multi-terrain maneuverability. It easily climbs stairs, trenches, and fallen logs. However, this agility comes at a steep price. The raised wheels demand complex tensioning mechanisms. You must frequently monitor and adjust track tightness to prevent failures.
Heavy construction equipment favors the flat oval design. Excavators and cranes do not need to climb trenches. They need ultimate stability while digging or lifting massive payloads. Oval layouts maximize ground contact from end to end. They anchor the machine firmly to the soil. The trade-off is extreme sluggishness. They feature almost zero obstacle clearance. A small boulder can easily halt their forward movement.
Specialized robotics often utilize four independent track modules. This quad-tread layout provides incredible articulation. Each module climbs over uneven rubble independently. You see this heavily in search-and-rescue operations. Unfortunately, control complexity skyrockets. You double the number of drive motors, belts, and tensioners. Exponentially higher points of failure make field repairs difficult.
Traditional wheels still dominate paved infrastructure. They offer phenomenal fuel efficiency. Wheeled systems hit high top speeds effortlessly. Maintenance remains relatively simple and predictable. However, wheeled systems exhibit very high ground pressure. Take them into a flooded marsh, and they sink instantly. They simply cannot compete in extreme off-road scenarios.
Procuring a continuous mobility system requires strict mathematical and mechanical evaluation. You cannot rely on aesthetics. Teams must measure specific dimensions to ensure operational success. We use several industry-standard metrics to grade potential chassis platforms.
Surface Area to Payload Ratio: You must calculate the required ground contact length. Match this against the maximum operational payload. This ratio determines if the vehicle will float over mud or sink immediately. Engineering teams establish strict ground pressure thresholds before selecting tread width.
Suspension Integration: The suspension connects the track frame to the main hull. Rigid systems cost less to manufacture. They endure abuse well but transfer violent vibrations directly to the payload. Independent torsion-bar or hydropneumatic suspensions absorb these shocks. They provide incredible stability at high speeds but drive up production costs significantly.
Steering Mechanisms: Most tracked machines use differential steering. One side brakes while the other accelerates. This skid-steering method generates severe mechanical toll. It grinds the treads into the dirt. It aggressively accelerates component wear. You must evaluate if the terrain can handle this destructive turning force.
Speed vs. Power Transfer: Driving continuous heavy loops requires immense engine power. Mechanical loss is inherent to the design. Friction saps efficiency before torque ever reaches the ground. You must evaluate the drivetrain efficiency ratings to ensure sufficient operational range.
Operating any continuous drive system introduces harsh field realities. Acknowledging these risks early prevents catastrophic breakdowns. tank treads present unique maintenance burdens. You must budget time and resources to keep them running efficiently.
Tracked machinery loses a massive percentage of engine power to internal friction. The engine must literally drag heavy steel or rubber loops around multiple wheels. Bearings, pins, and sprockets resist movement constantly. You need highly specialized, high-torque engines just to overcome this baseline resistance. This reality ruins fuel economy.
Derailment represents the ultimate operational failure. Mechanics refer to this as throwing a track. It happens when extreme lateral forces push the tread off the sprocket. Taking sharp turns on sloped ground frequently causes this. Incorrect tension also allows debris to jam between the wheels and the belt. Once derailed, the vehicle stops completely. Resetting a heavy loop in the mud causes massive operational downtime.
Rolling on continuous belts grinds components to dust over time. Rubber pads shred on sharp rocks. Steel pins stretch under constant tension. Idler wheels and drive sprockets grind down from abrasive dirt. You must rigorously schedule replacement cycles. Tracked systems demand a substantially higher OpEx than their wheeled counterparts. Procurement buyers must plan for constant preventative maintenance.
Heavy steel links aggressively degrade paved surfaces. A single turn can tear apart asphalt. This environmental damage heavily restricts deployment routes. Many municipalities ban bare steel on public roads. Dual-use operations require bolt-on rubber pads. These pads ensure operational compliance but add another layer of maintenance and cost.
Selecting the optimal foundation requires a systematic approach. You must align your engineering requirements with the physical realities of the chassis. Follow this logical progression to narrow down your procurement options.
Step 1: Define the Operational Environment. Assess the primary terrain thoroughly. If your path involves steep vertical obstacles and deep trenches, you absolutely require a trapezoid layout. If the vehicle operates on flat, soft agricultural ground, a flat oval system will suffice perfectly.
Step 2: Calculate Payload and Speed Requirements. You must match your engine output to the chassis weight. Factor in the mechanical loss from friction. Ensure your transmission can handle the immense torque required to turn heavy components from a dead stop.
Step 3: Evaluate Maintenance Capabilities. Determine your field support logistics. Can your operational team handle frequent tension adjustments? Do they have the tools to repair a derailed loop in severe weather? If field logistics are poor, consider simpler mobility options.
Step 4: Requesting Specifications. Engage vendors with precise questions. Ask them about specific track pitch measurements. Request data on link material durability. Clarify warranty constraints when operating under severe dynamic loads or extreme temperatures.
The distinctive trapezoidal profile utilized by heavy military and exploration vehicles is far from an aesthetic choice. It represents a precise, field-tested engineering solution. It solves the critical problems of navigating vertical obstacles, distributing immense weight over soft ground, and protecting vital powertrain components from shock. While wheeled systems dominate paved logistics, they simply cannot survive extreme off-road variables.
We encourage engineers and procurement buyers to meticulously map their load, speed, and terrain requirements. You must weigh the superior adaptability of a trapezoidal layout against its undeniable maintenance overhead. By utilizing the evaluation frameworks discussed, you can mitigate derailment risks and optimize power transfer. Always measure your operational realities against these mechanical trade-offs before committing to a final blueprint.
A: Automobiles avoid these systems due to extreme fuel inefficiency and severe road damage. They generate massive internal friction, which drains engine power and severely restricts top speeds. They also heavily degrade paved surfaces. The maintenance costs of replacing worn pins and belts make them completely unviable for daily civilian transit.
A: Generally, yes. Higher rolling resistance and the heavy rotational mass of the continuous loop limit top speeds. Friction constantly fights forward momentum. However, specialized military vehicles utilizing advanced hydropneumatic suspensions and immense turbine engines have closed this gap, achieving surprisingly high speeds in off-road environments.
A: Micro-scale systems face unique engineering challenges. Excessive friction drains limited battery life rapidly. Plastic gears frequently suffer from track slippage under load. Maintaining proper tension is incredibly difficult on small chassis frames. When tension fails, the belts derail immediately during tight turns.
A: Quad-tread designs offer superior modularity and independent track articulation. This allows the vehicle to conform dynamically to extreme, uneven terrains like disaster rubble. They also reduce turning friction compared to full-length loops. However, this agility comes at the cost of exponentially higher mechanical complexity and multiple failure points.
