Understanding how tank treads are manufactured is not just an academic exercise. It serves as a critical evaluation criterion for engineers and procurement teams. They specify mobility systems for heavy machinery, robotics, or custom off-road vehicles. The manufacturing tolerances directly dictate a vehicle's ground pressure. Material science choices determine maintenance intervals. Assembly methods heavily influence overall operational reliability. If you ignore these underlying elements, catastrophic equipment failures often follow. This guide breaks down the commercial manufacturing processes of continuous tracks. We provide a straightforward framework to evaluate various material tradeoffs. You can assess vendor capabilities accurately before committing to a specific system architecture. Knowing these details protects your engineering investment and ensures long-term field success.
Material Selection Dictates Lifespan: Modern continuous tracks rely on a split between high-manganese forged steel for high-impact environments and steel-cable-reinforced rubber for speed and surface preservation.
Manufacturing Method Indicates Quality: The choice between cast, forged, or stamped track links separates consumer-grade components from military or industrial-grade systems.
Chassis Integration is Unforgiving: Even the most durable tank treads will fail (throw a track) if not engineered in perfect alignment with the tracks chassis, drive sprockets, and tensioners.
Vendor Evaluation Requires Evidence: Shortlisting manufacturers requires verifying their metallurgical testing, vulcanization processes, and real-world failure rate data.
Component failure in tracked mobility systems leads to catastrophic downtime. This affects mining, agriculture, or defense applications severely. When a track breaks during active deployment, entire operations halt instantly. You lose valuable production time while waiting for specialized repair crews to arrive.
Inferior metal casting causes significant mechanical problems. Poor pin-and-bushing tolerances lead to rapid, premature stretching. This uncontrolled stretching inevitably causes "track throwing." Track throwing happens when the track derails from the sprockets entirely. Once a heavy vehicle throws a track, field recovery becomes incredibly difficult. Heavy replacement and labor burdens quickly accumulate.
A successfully manufactured tread system must meet distinct success criteria. We look for several key performance indicators when evaluating high-quality manufacturing:
Optimal Weight Distribution: The system must spread the chassis load seamlessly. This achieves a very low ground pressure, preventing the vehicle from sinking.
Abrasive Wear Resistance: The base materials must survive constant grinding against jagged rocks and loose sand without degrading prematurely.
Modular Repairability: Operators need the ability to fix individual components directly in the field without requiring heavy lifting equipment.
When operators can replace a single broken link onsite, they maintain high operational readiness. Poorly manufactured tracks simply snap under peak loads. High-quality manufacturing ensures the vehicle always returns from its mission safely.
Many buyers only look at the initial unit specifications. They fail to consider the exact operational terrain. Buying a lightweight cast steel track for a highly abrasive mining environment guarantees failure. Rocks quickly shatter brittle cast links. You must tightly align the manufacturing quality with the severity of your specific operational environment.
Track materials define where and how a vehicle can operate safely. Manufacturers divide these components into distinct functional categories. You must match the core material precisely to your required environment to maximize durability.
DIY-friendly and heavy industrial machines rely heavily on steel tracks. We see these forged links enduring extreme high-impact environments. Manufacturers utilize high-strength alloys for these demanding applications. They often blend significant amounts of manganese into the steel matrix. This specific chemical addition creates a surface structure that work-hardens. As the track strikes hard rocks, the outer metal layer actively becomes harder and more resistant to wear.
You gain extreme durability and unmatched modularity with steel. However, you face much higher vehicle weight. These aggressive tracks also cause significant road surface damage if driven on standard pavement.

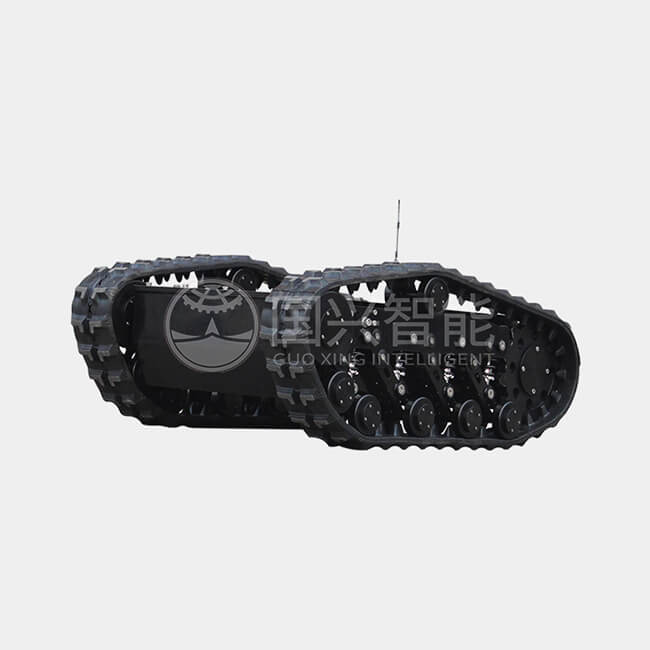

Commercial and agricultural machines favor continuous rubber tracks. Suppliers manufacture these components through intense, high-pressure vulcanization. They embed continuous steel cabling deep inside the structure. Kevlar belts reinforce the rubber matrix further. This internal skeleton prevents catastrophic snapping under heavy torque.
You achieve much higher operating speeds and lower vehicle vibration using rubber. These smooth tracks preserve pavement perfectly. But they remain susceptible to deep cuts and lateral tears from debris. They usually require total-loss replacement since you cannot easily swap out a single damaged section in the field.
Hybrid systems offer a highly effective middle ground. You start the build using traditional steel tracks. Then you fit them directly with replaceable rubber track pads. Many engineers call these rubber shoes. They balance raw pulling traction and vital surface protection beautifully.
Below is a material evaluation matrix to guide your structural procurement decisions.
Material Type | Primary Application | Key Manufacturing Advantages | Main Operational Drawbacks |
|---|---|---|---|
High-Manganese Forged Steel | Defense, Heavy Mining, Forestry | Work-hardens under impact, allows modular field repair of individual links. | Excessive weight, destroys paved roads, generates high vibration. |
Continuous Vulcanized Rubber | Agriculture, Compact Loaders | Preserves pavement, enables higher speeds, reduces mechanical vibration. | Vulnerable to sharp debris tears, requires full replacement if cables snap. |
Hybrid (Steel with Rubber Pads) | Urban Combat Vehicles, Custom Robotics | Combines extreme steel strength with replaceable surface-protecting pads. | Increases maintenance complexity, rubber pads wear out quickly on rocks. |
Producing dependable tracks requires exceptionally strict engineering controls. Let us explore the exact sequential stages involved. Understanding this workflow helps you spot critical quality defects early in the evaluation process.
Forming the Track Links: The initial stage forms the heavy structural skeleton. High-end industrial tank treads are forged rather than cast. Forging guarantees superior structural integrity. The immense mechanical pressure aligns the grain structure of the metal perfectly. Lighter duty applications might use cast steel or aluminum instead. Casting leaves microscopic air pockets internally, which drastically reduce overall shear strength under load.
Heat Treatment and Quenching: This thermal cycle remains absolutely critical to longevity. It achieves the necessary Rockwell hardness for the exposed metal surfaces. The factory heats the components entirely, then cools them rapidly in specialized quenching fluids. Improper tempering creates highly brittle links. These flawed links will inevitably crack under heavy turning torsion.
Pin and Bushing Machining: This precision step creates the vital hinges connecting individual links. Evaluators must look closely for sealed, lubricated pin designs. Superior mechanical seals prevent grit intrusion effectively. This directly extends the service life of the entire drive system. Precise CNC machining here stops premature track elongation from occurring.
Pad Vulcanization: Hybrid and rubber treads require intensive chemical bonding. The factory bonds tough rubber compounds directly to the prepared metal skeleton. They apply immense heat and pressure inside large curing molds. Delamination here serves as a primary indicator of poor manufacturing quality. If the rubber peels away later, the bonding process failed fundamentally.
When auditing a factory, always ask to view their quenching stations. If the quenching fluid temperature varies wildly, the resulting steel hardness will lack consistency. Consistent thermal control marks the difference between premium manufacturers and budget suppliers.
A tread operates only as reliably as the mechanical system driving it. Evaluating the track entirely in isolation remains a common procurement mistake. You must view the entire mobility system holistically to ensure functional success.
The exact manufacturing pitch of the track links dictates forward performance. This pitch distance must perfectly match the drive sprocket teeth. If the structural dimensions miss by even a few millimeters, you experience aggressive slipping. Excessive friction occurs rapidly across the contact points. This grinding friction quickly destroys expensive sprocket teeth and stalls the vehicle.
Tensioning mechanics matter just as much during chassis integration. The system must accommodate natural track stretch over time. Heavy loads stretch the metal pins gradually through regular use. Some designs use active hydraulic tensioners to absorb this slack. Others rely on simpler grease-filled mechanical tensioners. Your choice here directly dictates your ongoing field maintenance requirements.
Evaluating idlers and road wheels is equally crucial. You must examine the exact load-bearing interface closely. This critical zone sits directly between the inner track surface and the tracks chassis road wheels. Proper wheel spacing prevents the outer track edges from bowing inward. It distributes the immense ground pressure perfectly evenly across the entire vehicle footprint.
If the chassis lacks proper lateral guides, the tracks will slip off sideways during sharp turns. Engineers must verify that the inner guide horns on the track links interface cleanly with the chassis road wheels. Clearances must remain tight enough to prevent derailment, but loose enough to allow mud and debris to escape freely.
Finding the right manufacturing partner requires aggressive diligence. You must demand hard proof of their factory capabilities. Do not rely on slick marketing brochures or vague durability promises.
Demand material certification sheets from all potential vendors immediately. Mill test reports verify the exact chemical compositions of the raw steel. Do not accept generic "high-strength steel" claims. You need raw metallurgical data to ensure the alloy actually meets your engineering standards.
Request rigorous tolerance testing data upfront. You must understand the specific pitch elongation over operating hours. How much do the tracks stretch after a thousand hours of heavy pulling? Reliable vendors test this constantly and have this specific data readily available for buyers.
Assess their rapid prototyping capabilities closely. Custom vehicle builds or robotic applications always require frequent design tweaks. The manufacturer should produce functional prototypes quickly. They must seamlessly adjust the track pitch or rubber compounds based on your direct field testing results.
Before finalizing any high-volume purchase agreement, demand a comprehensive pilot test. Run the fully integrated tracks under maximum payload conditions. Force the mobility system into worst-case environmental scenarios. Only commit to the final contract once the field data completely validates the factory promises.
Sourcing or designing continuous track systems requires deep, critical analysis. You must look far past the surface appearance of the metal or rubber. You need to thoroughly understand the precise metallurgical and engineering processes involved behind the scenes. A shiny new track means absolutely nothing if the underlying steel forging remains dangerously brittle.
Prioritize manufacturers who offer fully transparent testing data. They should openly emphasize the holistic integration between the tread and the larger undercarriage structure. If a vendor ignores the chassis interface during their sales pitch, you should walk away immediately.
Consult with a specialized mobility systems engineer today. Audit your vehicle's exact payload capacity and terrain requirements closely. Do this long before selecting any final track material. Making an informed engineering choice now saves you from catastrophic equipment downtime and systemic failures later.
A: The lifespan depends heavily on your operating terrain and manufacturing quality. Abrasive rock degrades materials much faster than soft mud. Engineers typically measure this lifespan in thousands of operating hours, rather than miles driven. Forged steel tracks in moderate conditions can easily exceed 3,000 to 5,000 hours of continuous use.
A: You can generally repair steel link tracks in the field. Operators fix them by replacing broken pins or individual metal links using standard tools. Continuous rubber tracks present a different challenge entirely. They often require a complete replacement if the embedded internal steel cables snap under severe tension.
A: A lower desired ground pressure strictly dictates the physical design. It requires significantly wider tracks to distribute the weight. Consequently, you need stronger transverse rigidity during link manufacturing. If the manufacturer fails to reinforce the lateral structure, the track edges will curl upward under heavy vehicle loads.
