Wheeled locomotion dominates smooth paved surfaces. It relies on minimal ground contact for high-speed travel. However, heavy machinery and off-road robotics require a different approach. They demand continuous track systems to conquer unpredictable environments. When engineers integrate tank treads into a design, they solve massive traction problems. These systems distribute immense weight over soft ground, preventing sinkage.
This immense capability introduces notable engineering trade-offs. Tracks add significant mechanical complexity to a vehicle. They generate higher friction than wheels. They also demand exponentially increased power. You must understand these underlying mechanics to succeed. Engineers and technical buyers need a solid grasp of this physics. It ensures you evaluate and select the right tracks chassis for your operational environment. We will explore the mechanical anatomy, physics, and deployment realities of continuous tracks. You will learn how to approach material selection and mitigate implementation risks.
The "Continuous Road" Principle: Tank treads do not propel a vehicle by pushing the ground directly; rather, they lay down a continuous, stationary track over which the road wheels roll.

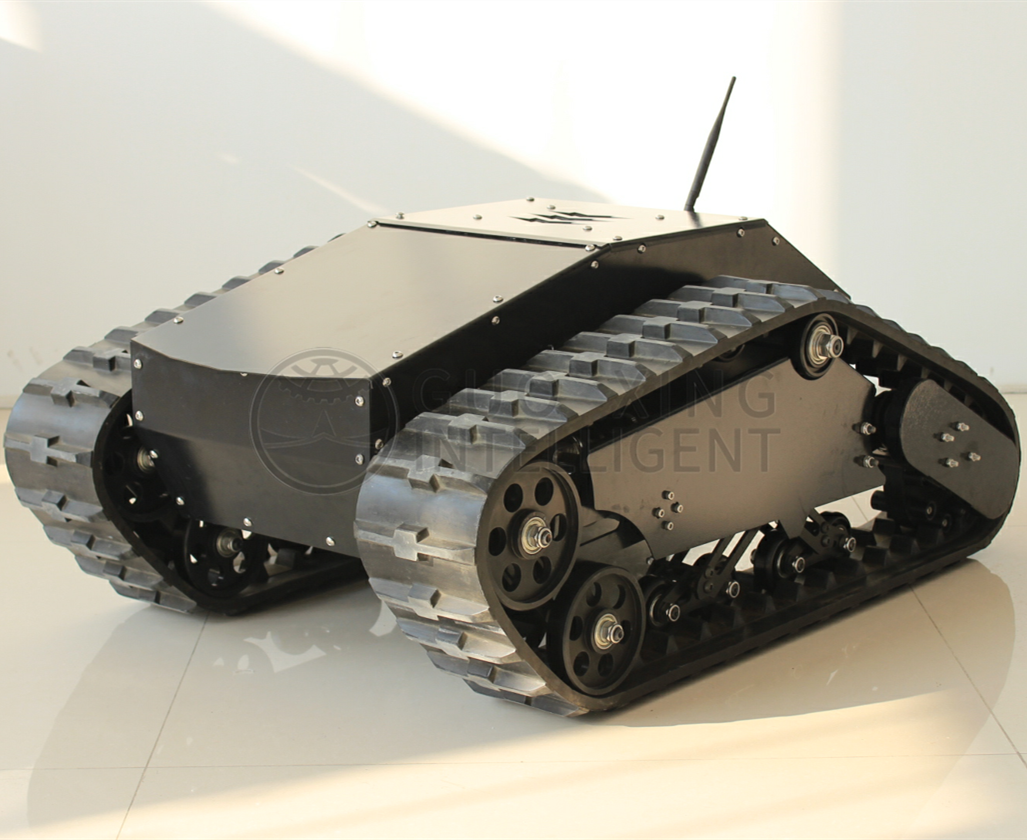

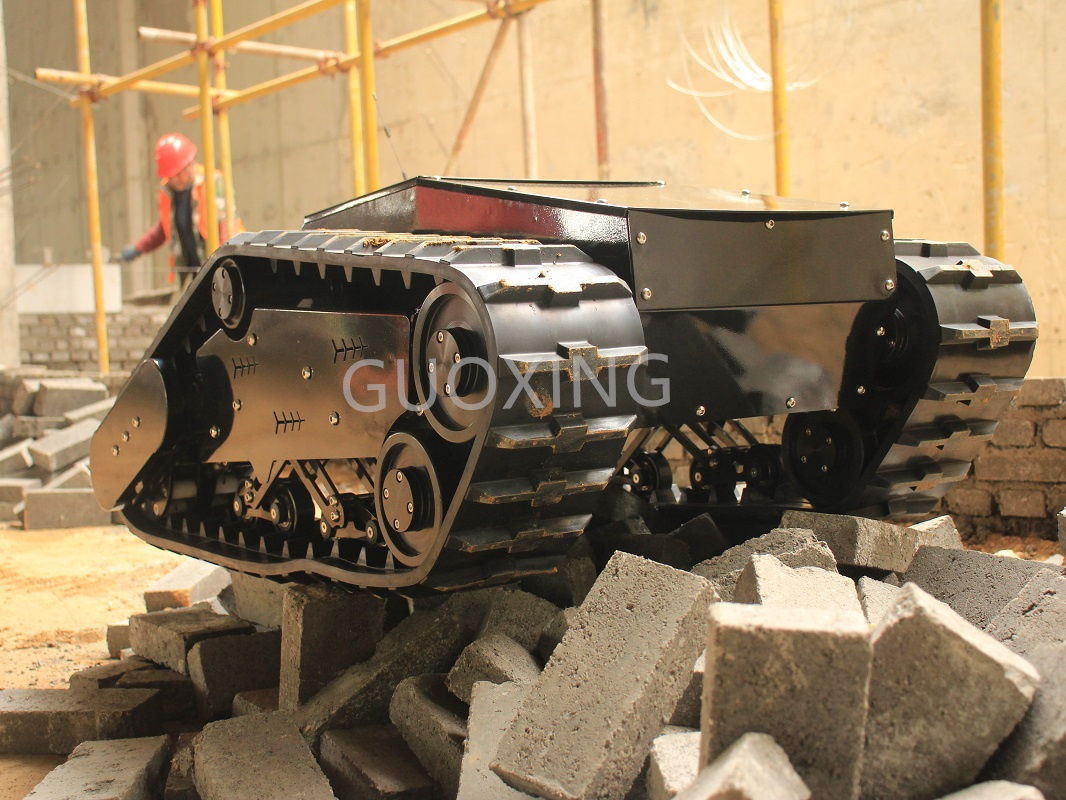

Ground Pressure Advantage: By distributing payload weight across a vastly larger surface area, tracks chassis systems prevent sinkage in mud, snow, or loose terrain.
Design Complexity: Proper implementation requires precise calculation of motor torque, track tensioning, and skid-steer power requirements to prevent track shedding or drivetrain failure.
Selection Criteria: The choice between steel and rubber treads depends entirely on the operational environment, load capacity, and acceptable maintenance overhead.
A continuous track system relies on several interdependent components. Each part must function perfectly to ensure mobility. If one component fails, the entire chassis halts. Understanding these elements helps you design better off-road solutions.
Drive sprockets are the powered gears of the system. You typically find them at the rear or front of the chassis. These sprockets connect directly to the drive motors. They feature prominent teeth. These teeth engage the track links to pull the continuous belt forward. The placement of the drive sprocket affects the center of gravity. It also impacts how the vehicle climbs obstacles.
Road wheels carry the actual weight of the vehicle. These unpowered wheels sit along the bottom of the chassis. They roll along the inside surface of the track. By using multiple road wheels, the system distributes the payload evenly. A higher number of road wheels results in smoother weight distribution. This prevents the vehicle from bowing the track.
Idler wheels sit at the opposite end of the drive sprocket. They do not provide propulsion. Instead, they serve a critical structural purpose. Idler wheels guide the belt as it loops around the chassis. They are essential for maintaining track tension. Proper tension prevents the track from slipping off during aggressive maneuvers.
The tread itself consists of track links and pins. These interlocking segments form the continuous loop. In some systems, continuous rubber belts replace individual steel links. The links dictate flexibility and overall ground grip. Track pins hold steel segments together. They act as hinges. These pins endure immense shear forces during turns.
Suspension mechanisms keep the track taut over uneven terrain. Common designs use torsion bars or pneumatic tensioners. These tensioners adjust the position of the idler wheel.
Best Practices for Chassis Anatomy:
Inspect track pins regularly for micro-fractures.
Calibrate pneumatic tensioners before deploying in cold weather.
Ensure drive sprocket teeth perfectly match the pitch of your links.
The physics behind tank treads often confuses casual observers. The mechanics differ drastically from traditional wheeled kinematics. You must grasp these concepts to calculate motor requirements accurately.
People commonly misunderstand how tracks interact with the earth. The portion of the tank tread touching the ground remains completely stationary relative to the ground. It does not slide. The vehicle drives forward. The top of the track races forward at twice the vehicle's speed. However, the bottom contact patch lays flat. The road wheels simply roll over this stationary belt. This creates pure static friction. Static friction offers significantly more grip than kinetic (sliding) friction.
Track systems excel at supporting heavy payloads. They achieve this by maximizing the contact area. You can calculate this using a simple formula: Ground Pressure equals Weight divided by Contact Area.
A wheeled chassis concentrates its entire weight onto four small tire patches. This results in high pounds per square inch (PSI). High PSI causes a vehicle to sink in mud. A track system spreads that same weight over massive rectangular footprints. This lowers the PSI dramatically. A 60-ton machine on tracks often exerts less ground pressure than a human footprint.
Turning a tracked vehicle requires skid steering. Tracks lack a traditional steering axis. You cannot angle them left or right. Instead, turning requires varying the speed or direction of the opposing tracks.
If you want to turn left, you slow the left track and speed up the right track. A zero-radius pivot turn requires reversing one track while driving the other forward. This movement drags the stationary track laterally across the ground. It generates massive lateral friction. Your motors must supply tremendous torque to overcome this resistance.
Engineers must objectively evaluate when to use tracks versus wheels. Neither system is universally superior. Your operational environment dictates the choice.
Terrain Type | Track System Performance | Wheeled System Performance |
|---|---|---|
Soft Soil / Mud | Excellent. Prevents sinkage via low ground pressure. | Poor. High risk of getting stuck. |
45-Degree Inclines | Superior. Maximum static friction prevents slipping. | Marginal. Highly dependent on tire tread and weight. |
Trench Crossing | Excellent. The long footprint spans gaps easily. | Fails. Wheels drop into the trench. |
Paved Roads (High Speed) | Poor. High friction limits speed and causes damage. | Superior. Low rolling resistance allows high speed. |
Track systems scale exceptionally well. Lightweight robotics use small rubber belts for bomb disposal. Massive 60-ton excavators use heavy steel links for mining. As payload increases, the track width and length must increase to maintain low ground pressure. However, this scalability comes with exponential power demands. Moving a heavy track requires massive energy just to overcome internal mechanical resistance.
Energy efficiency is a critical hurdle. Autonomous and electric robotics suffer heavily on tracks. A wheeled setup enjoys freewheeling efficiency. Once moving, wheels require little energy to maintain momentum. Tracks suffer from parasitic power loss. Bending the thick belt around sprockets wastes energy. The sheer weight of the tracks drains batteries rapidly. You must account for this limited range during the design phase.
Procuring the right system requires rigorous technical evaluation. You must align material choices and motor specifications with your exact use case.
The tread material defines the vehicle's operational limits. You have two primary options: rubber or steel.
Rubber Tracks: These provide lower vibration. They offer quieter operation. Rubber is surface-friendly. It will not destroy concrete or asphalt. This makes it ideal for tactical robotics, agricultural machinery, and urban construction. However, sharp debris can slice rubber belts.
Steel Tracks: Steel offers extreme durability. You can equip them with aggressive grousers (metal cleats) for ice or rock. They are ideal for abrasive environments like quarries or demolition sites. Be warned, steel tracks cause severe surface degradation. They will tear up paved roads instantly.
Motor sizing is the most common point of failure in chassis design. You cannot size a motor based solely on straight-line speed. You must calculate the starting torque needed to overcome static friction.
Furthermore, you must account for lateral drag during pivot turns. A vehicle might move forward easily on a 500-watt motor. However, turning in deep mud might require 2000 watts of peak torque. If you undersize the motors, the vehicle will stall out during turns. Overheating is a constant threat if torque margins are too tight.
Tracks wear out significantly faster than wheels. You must frame your maintenance schedule around this reality. Replacing track pins is a frequent requirement for steel systems. Sprocket teeth grind down over time. Tensioners require frequent recalibration to prevent slack. This adds substantial operational overhead. Your maintenance teams must be trained for track alignment. They need specialized tools to break and reconnect heavy steel links in the field.
Laboratory testing rarely prepares you for field deployment. Real-world environments introduce chaotic variables. You must design safeguards against these common implementation risks.
Debris is the natural enemy of any continuous track. Rocks, thick mud, or packed snow constantly infiltrate the chassis. This debris packs tightly into the drive sprockets. As material builds up on the gears, it artificially increases the diameter of the sprocket. This leads to severe track overtensioning. If the tension exceeds the material strength, the track snaps.
Common Mistakes:
Designing enclosed chassis sides that trap mud inside the wheel wells.
Failing to install mud scrapers near the drive sprockets.
Track shedding is a catastrophic failure. This occurs when lateral forces peel the tread off the idler or road wheels. It usually happens when turning aggressively on uneven terrain. A rock might catch the side of the track, pushing it laterally.
You can mitigate this through robust chassis design. Engineers use deep guide horns. These metal protrusions sit in the center of the track links. They slide between the road wheels, physically locking the track in place laterally.
Tracks lack the pneumatic shock absorption of traditional tires. Every rock and bump transfers kinetic energy directly into the chassis. This constant vibration causes severe hardware fatigue. Internal electronics can shake loose. Welds can crack under repetitive stress. Human operators experience physical fatigue much faster. You must isolate sensitive payloads. Use heavy-duty shock mounts for all internal computers, sensors, and batteries.
Tank treads remain specialized solutions for extreme mobility. They solve severe ground pressure and traction issues effectively. However, they achieve this at the cost of high mechanical complexity, parasitic energy loss, and intense maintenance demands. Understanding the physics of stationary ground contact and skid-steering torque ensures your designs will not stall in the field.
Take the following actionable steps as you move forward:
Prototype your exact payload weights before selecting track width to ensure your ground pressure calculation is accurate.
Calculate your motor torque requirements based on zero-radius pivot turns in the worst-case terrain condition, not straight-line driving.
Specify shock isolation mounts for all internal electronics to combat the harsh vibrations inherent to track systems.
Consult with specialized chassis manufacturers to spec out custom tracks rather than retrofitting generic components.
A: It relies on the physics of relative velocity. The vehicle chassis moves forward at a specific velocity. Simultaneously, the internal gears pull the track backward at that exact same velocity. These two opposing velocities cancel each other out. This makes the velocity of the ground contact patch exactly zero relative to the earth. It creates high static friction for grip.
A: You must account for several extreme variables. Calculations require the vehicle's total mass and the intended terrain's coefficient of friction. You also need the exact radius of the drive sprocket. Most importantly, you must calculate the extreme lateral torque required for zero-radius skid steering, which demands vastly more power than driving straight.
A: There is no mechanical difference. "Continuous track" is the formal engineering terminology used by designers and manufacturers. "Tank treads" is simply the colloquial term recognized by the general public. Both phrases refer to the exact same fundamental mechanical system of interlocking belts and road wheels.
A: It is entirely use-case dependent. Rubber tracks are superior for vibration reduction, higher speeds, and protecting paved surfaces. They are common on small robots and tractors. Steel tracks are mandatory for high-abrasion, heavy-load industrial environments like demolition or mining, where rocks would easily shred rubber.
