Robotics engineering features an extreme variance in base platform pricing. A basic prototyping kit might cost under $100. Conversely, an industrial mobile platform easily exceeds $10,000. We must treat the chassis as the foundational investment for any robotics project. Under-budgeting this critical component routinely leads to catastrophic structural failures. You will eventually face incompatible payloads. Many engineering teams end up scrapping their entire deployment. This article exists to demystify these complex pricing tiers. We will expose the hidden variables driving overall project expenses. You will discover a clear framework to evaluate commercial and heavy-duty options. We show you how to source the right frame without over-engineering it. You can achieve robust performance while respecting your procurement budget. Careful planning prevents expensive redesigns.
The robotics market categorizes platforms into three distinct pricing tiers. You must align your project requirements directly to these tiers. Choosing an incorrect baseline category wastes valuable time and resources.
Low-cost chassis utilize acrylic, basic ABS plastics, or thin stamped metals. Manufacturers design these solely for proof-of-concept (POC) work. They cost very little upfront. However, you cannot deploy them in real-world commercial scenarios. They remain highly susceptible to chassis flex. They struggle to absorb ambient vibration. For instance, mounting a precision LiDAR sensor on a flexing acrylic base introduces massive data noise. We recommend these strictly for classroom education or preliminary software testing. The structural integrity rapidly degrades under continuous operational stress.
Commercial platforms represent a moderate price jump. Engineers build these from extruded aluminum or reinforced polycarbonates. Extruded aluminum, like standard T-slot profiles, dominates this tier. You see these frames widely used for indoor autonomous mobile robots (AMRs). They serve warehouse logistics operations perfectly. They also form the backbone of customer-facing service robots. You gain immense modularity here. Teams can easily bolt new sensors directly onto the aluminum slots. They provide rigid structural support without adding excessive dead weight.

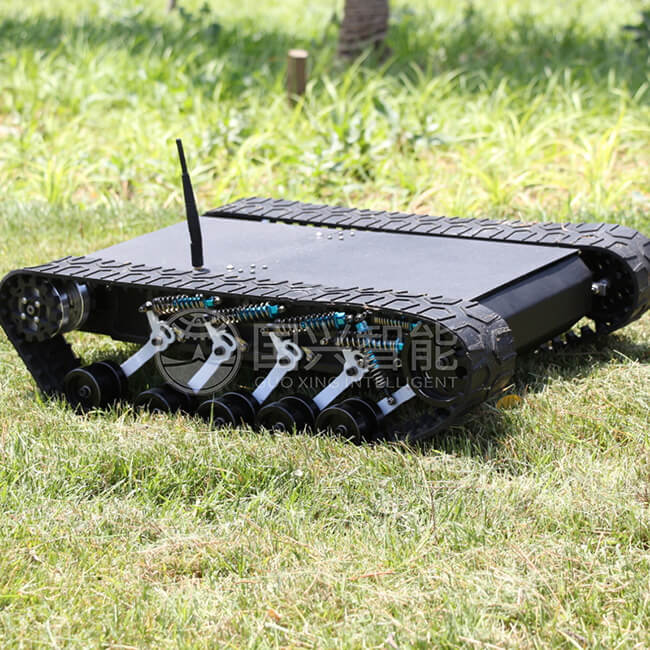

Industrial systems demand high-cost investments. Builders construct these robust units from welded steel. They sometimes use custom aerospace-grade aluminum alloys. Heavy-duty composites also appear in modern ruggedized designs. You absolutely need these heavy materials for agriculture and mining environments. Heavy payload transport requires immense structural rigidity. Factories build them to withstand high continuous torque from powerful traction motors. They endure severe environmental abuse daily. A single rock strike could easily shatter a plastic frame. A welded steel frame simply absorbs the impact and continues operating.
| Chassis Tier | Primary Materials | Typical Applications | Relative Modularity |
|---|---|---|---|
| Prototyping & Educational | Acrylic, ABS Plastic, Thin Metal | STEM, Software POC, Desktop Testing | Low (Pre-drilled fixed holes) |
| Commercial / Mid-Range | Extruded Aluminum, Polycarbonate | Indoor AMRs, Warehouse Logistics | High (T-slot tracking) |
| Industrial / Heavy-Duty | Welded Steel, Aerospace Alloys | Agriculture, Mining, Heavy Transport | Moderate (Welded joints, custom mounts) |
Engineers must evaluate several core variables before purchasing a platform. We have identified four primary variables driving manufacturing expenses. Each factor shifts your procurement budget significantly.
Raw material choices directly dictate baseline expenses. Plastic resins cost pennies compared to raw aluminum stock. Welded steel commands an even higher premium. However, material processing drives the final invoice much higher. Injection-molded off-the-shelf plastic parts require massive upfront tooling. Once retooled, individual unit costs plummet. Conversely, CNC machining removes material from solid metal blocks. It costs significantly more per unit due to machine time. Laser cutting offers precision but requires specialized equipment. Welding labor adds massive overhead costs to steel frames. Expert welders must carefully mitigate thermal distortion during assembly.
Higher load requirements demand thicker metal gauges. You must include reinforced joint gussets. Heavy platforms often require active suspension systems. These mechanical additions multiply the baseline cost rapidly. You will notice Robot Chassis Cost scales exponentially alongside higher payload thresholds. If you double the safe payload capacity, the structural price often triples. The frame must safely support massive kinetic energy forces during sudden braking maneuvers.
Operating outdoors forces you to consider environmental sealing. You face distinct costs associated with stringent waterproofing protocols. Dust-proofing adds further manufacturing expenses. Adding protective enclosures for delicate internal electronics commands a steep premium. Achieving standard IP65 to IP67 ratings requires specialized rubber gaskets. Manufacturers must precisely seal every exposed motor shaft. They use expensive conformal coatings on exposed power distribution boards.
Procurement teams constantly debate buying standardized platforms versus fabricating custom units. Each approach carries distinct financial implications.
Purchasing a pre-built frame offers numerous immediate advantages. You enjoy highly predictable expenses. The initial procurement cost remains significantly lower. Vendors hold inventory locally. You benefit from vastly faster lead times.
However, standardized solutions present distinct drawbacks. You often face forced compromises regarding payload distribution. A generic frame might sit too high for your center of gravity requirements. Furthermore, vendors may restrict buyers to proprietary components. You might have to buy expensive vendor-specific motors and sensors. This vendor lock-in quickly inflates future maintenance budgets.
Building a custom frame delivers optimal operational performance. Engineers optimize the structure precisely for the operational workflow. They tailor the frame perfectly around the specific sensor payload. They build dedicated compartments for exact battery dimensions. You achieve a much better long-term return on investment during scaled deployments.
Conversely, custom routes incur high initial financial hurdles. You must pay substantial Non-Recurring Engineering (NRE) costs upfront. The development cycle requires longer lead times. Teams must complete rigorous CAD validation phases. Prototyping iterations consume valuable engineering hours before final production begins.
| Evaluation Metric | Off-the-Shelf Standardized | Custom Fabricated |
|---|---|---|
| Initial Procurement Cost | Low to Moderate | High (Due to NRE fees) |
| Lead Time | Fast (Often shipped from stock) | Slow (Requires CAD, prototyping) |
| Design Optimization | Generic, requires compromises | Perfectly tailored to workflow |
| Vendor Lock-In Risk | High (Proprietary mounts) | Low (Agnostic design choices) |
Buyers frequently underestimate the secondary expenses associated with bare metal frames. You must look beyond the initial invoice price.
A superficially cheap bare chassis often lacks standardized mounting holes. You save money upfront but lose it during assembly. You are forced to purchase expensive custom adapters. Alternatively, you must buy proprietary high-torque motors directly from the same manufacturer. Engineering custom motor mounts consumes dozens of labor hours. Ensure your chosen frame supports widely available NEMA standard stepper motors or standard servo faceplates.
Shipping heavy metal across the globe severely impacts budgets. Heavy-duty platforms incur massive freight fees. Pre-assembled systems ship in large wooden crates. Carriers utilize dimensional weight pricing models. A bulky but relatively light frame might still cost thousands to ship internationally. Always calculate landed costs. Dimensional weight pricing can completely ruin a strictly planned procurement budget.
You must calculate the long-term cost of replacing worn components. A welded unibody chassis might require a full structural replacement if a single mounting point bends. You cannot easily unbend heavy gauge steel accurately. Conversely, modular T-slot aluminum allows for incredibly cheap repairs. You simply unbolt the damaged extrusion. You replace it with an isolated, inexpensive fresh cut of aluminum.
Follow this structured evaluation process. You will confidently identify the correct frame for your unique application requirements.
The true value of a platform is measured by long-term reliability. A quality frame must reliably support the payload. It must navigate the intended operational environment consistently over time. Buyers must aggressively avoid the "cheap chassis trap." A weak, vibrating frame inevitably damages expensive onboard LiDAR sensors. It causes drive motors to overheat and fail prematurely due to misalignment.
We highly encourage readers to consult directly with mechanical engineering teams. Request detailed technical spec sheets from multiple vendors. Always demand comprehensive expense breakdowns before submitting a purchase order. Thorough upfront evaluation prevents disastrous deployments.
A: A heavy-duty platform typically starts in the low thousands. It can easily exceed $10,000 based on your specific requirements. Payload capacity heavily dictates the final number. Drive type also shifts the price dramatically. Tracked models cost significantly more than basic differential drives. Custom welded steel frames carry higher initial engineering fees.
A: Yes, aluminum remains essential for any commercial application. It provides vastly superior structural rigidity. Aluminum acts as a massive thermal heat sink for high-power traction motors. It dissipates internal heat quickly. It significantly reduces chassis flex. Reduced flex improves precision sensor accuracy and greatly extends your drivetrain lifespan.
A: A 2WD differential drive pairs excellently with passive casters. It represents the most reliable and budget-friendly setup available. You gain excellent maneuverability on flat indoor surfaces. It requires far fewer moving parts than omnidirectional setups. This mechanical simplicity keeps initial procurement costs low and minimizes long-term maintenance requirements.
