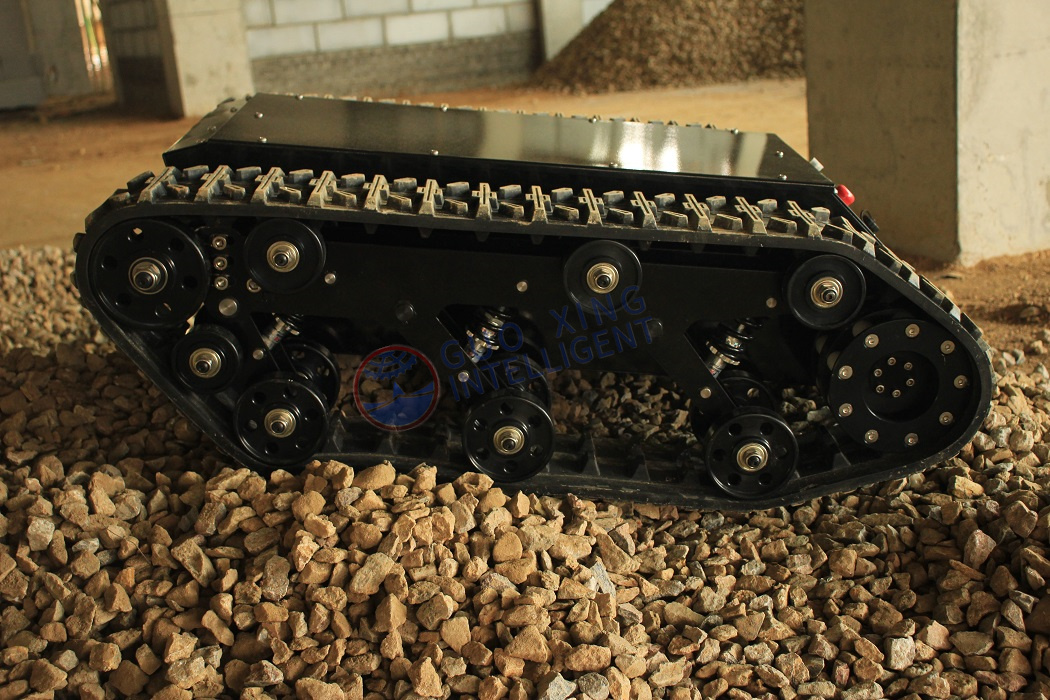

RC Mobile Tank All Terrain Tracked Robot Chassis Safari - 600T

Safari 600T is a widely used mobile platform for series of robots.The unique rubber track design has good vibration ability and suitable for all terrains.It can equipped with different devices to realize different function.is unique crawler robot chassis with wide application.
  • Safari-600T

  • GUOXING

Load Weight:
Max Speed:
Application:
Availability:
Quantity:

600T_副本



Product Introduction

4

SAFARI-600T


Best among other chassis of the excellent level and striving to pursue higher passage and cross-country capacity


It can go any place where it is needed while loading equipment can weight up to 80KG


Equipped with Christie+Matilda four-wheel balance suspension


The product can adapt itself to heavy load and vibration reduction


6 vibration absorbers installed on the whole body with unique design of reducing vibration allows for terrain impact


The product can be widely used for robot movement solutions in complex environment.




Key Features


  1. Large support area, small sinking degree

  2. Suitable for soft and muddy ground

  3. Excellent cross-country

  4. Turn in place

  5. Greater traction pull.

  6. 40 degree climbing ability

  7. Able to climb slopes, stairs & surmounting obstacles

  8. Stainless steel vehicle , solid & durable

  9. Heavy load duty 80kgs



Support CAN BUS protocol


Customize a variety of advanced operation modes, provide motion control CAN protocol, and support secondary development.

  • Large space platform is reserved for quick building top load(sensing, industrial control, routing, camera, etc)

  • Supports customized design of sensor AI profile bracket.

  • Widely used for the development of special robots such as

  1. Patrol inspection

  2. Exploration

  3. Rescue

  4. Explosive disposal

  5. Special shooting

  6. Special transportation



Product Parameter


尺寸图


Model Safari 600T
Dimensions 1020*760*360mm
Interior Size 510*290*220mm
Self Weight 100KGS
Load Weight 80KGS
Height of Chassis 100MM
Rated Torque 60NM
Body Material Carbon Steel
Max Angle of climbing 40 Degrees
Operating Speed 0~1.4m/s
Max Obstacle 170mm
Track Material Quality Rubber embed with with Kevlar fiber
Suspension System Christie suspension
Vibration Reduction 6 Independent vibration absorbers on both sides
Protection Grade IP54(Optional IP67)
Motor 48V DC Brushless motor
Product Application Fire Fighting,EOD,Patrol Inspection,Detection,Military



Product video





Customer case



600T底盘案例 (2)

Industrial robot

600T底盘案例

Industrial robot

600T加强版底盘案例

Disinfection robot

600T巡检底盘

Patrol Detection Robot




How to buy a best suitable robot platform for your project?

1: Tell us what is the purpose for the purchase.

2: Tell us your requirements for the robot platform, such as load weight, obstacle-surmount, and other special requirements.

3: Tell us the quantity for the purchase.

4: Just feel free to contact us!


Video of 600T Patrol Robot
