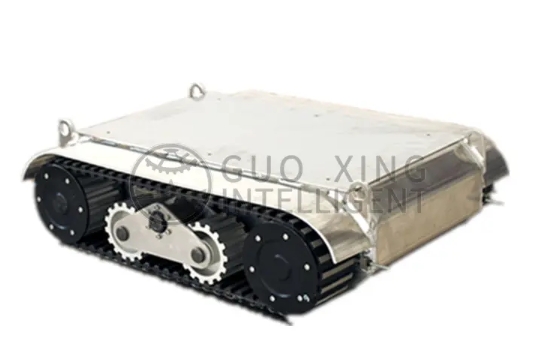

The KT200 Robot Chassis is a high-performance industrial crawler robot platform developed by GUOXING INTELLIGENT, designed for demanding B2B industrial automation, inspection, and material handling scenarios. Built with a rugged aluminum alloy main body and high-traction rubber tracks, this heavy-duty crawler robot chassis adopts a military-grade simplified suspension structure, delivering exceptional stability and load capacity even in complex, uneven terrains.
Equipped with a premium brushless DC drive system, the KT200 industrial robot chassis provides reliable power for long-duration missions, making it an ideal core platform for secondary development and integrated industrial solutions for system integrators, research institutions, and industrial enterprises worldwide.
With a rated payload of up to 100kg, the 100kg load robot chassis maintains stable operation under full-load conditions, thanks to its optimized suspension structure that mimics U.S. military design standards. Its long grounding track length ensures maximum ground contact, minimizing slip and enhancing stability on rough, sloped, or uneven surfaces for critical industrial missions.
The KT200 crawler robot chassis is powered by dual 24V brushless DC planetary gear motors with a total rated power of 360W, delivering a rated torque of 54NM for consistent power output. The brushless design ensures long service life, low maintenance costs, and low noise operation, perfectly matching the long-term continuous operation needs of B2B industrial applications.
Crafted from high-strength aluminum alloy, the chassis body offers excellent corrosion resistance and impact resistance, while the wear-resistant rubber tracks adapt to various indoor and outdoor terrains. With a compact structure and low chassis height, it can flexibly navigate narrow spaces, meeting the diverse needs of industrial on-site operations.
Item | Core Parameters | Item | Core Parameters |
Body Material | High-Strength Aluminum Alloy | Overall Dimension | 610×450×195mm |
Track Material | Wear-Resistant Rubber | Self Weight | 50KG |
Drive System | 24V Brushless DC Planetary Gear Motor | Max Rated Load | 100KG |
Rated Power | 180W×2 | Chassis Ground Clearance | 25mm |
Rated Torque | 54NM | Adjustable Speed Range | 0~0.3m/s |
Standard Endurance | 2.5H | Track Grounding Length | 495mm |
This versatile DIY-friendly robot chassis is widely used for indoor & outdoor material transportation, including workshop logistics, warehouse handling, automated material transfer, and supporting automated painting, sandblasting and surface treatment operations for manufacturing enterprises.
It is the optimal choice for industrial inspection & surveillance in power plants, substations and factory workshops, as well as specialized hazardous environment tasks including EOD robot chassis applications, toxic environment detection and emergency response for industrial safety management.
The platform fully supports secondary development and DIY projects for university robotics research, technological innovation projects, and custom robot platform development for system integrators and automation solution providers.
We provide comprehensive OEM & ODM customization services for global B2B clients, including system integrators, industrial manufacturers, and research institutions. Our engineering team works closely with clients to tailor the KT200 Robot Chassis to match specific project requirements and industry standards.
Customization options cover chassis dimension adjustment, motor power and voltage upgrade, endurance capacity extension, communication interface customization, multi-type sensor integration, and exclusive appearance branding for enterprise clients.
Whether you need a standard crawler robot chassis or a fully customized mobile robot platform, GUOXING INTELLIGENT is your reliable B2B robotics partner. Contact our professional sales and engineering team today to discuss your project needs, get a detailed technical datasheet, and receive a competitive custom quote for the KT200 Robot Chassis.
