Remote Control Smart Custom Lightweight Robot Chasiss 600Tmini

  • SAFARI-600T MINI
  • Guoxing Intelligent
Availability:
Quantity:

600T MINI_副本


Product Introduction


2

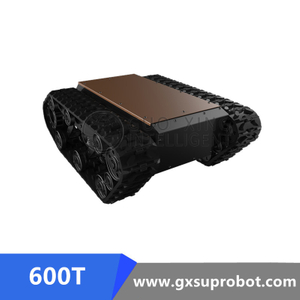

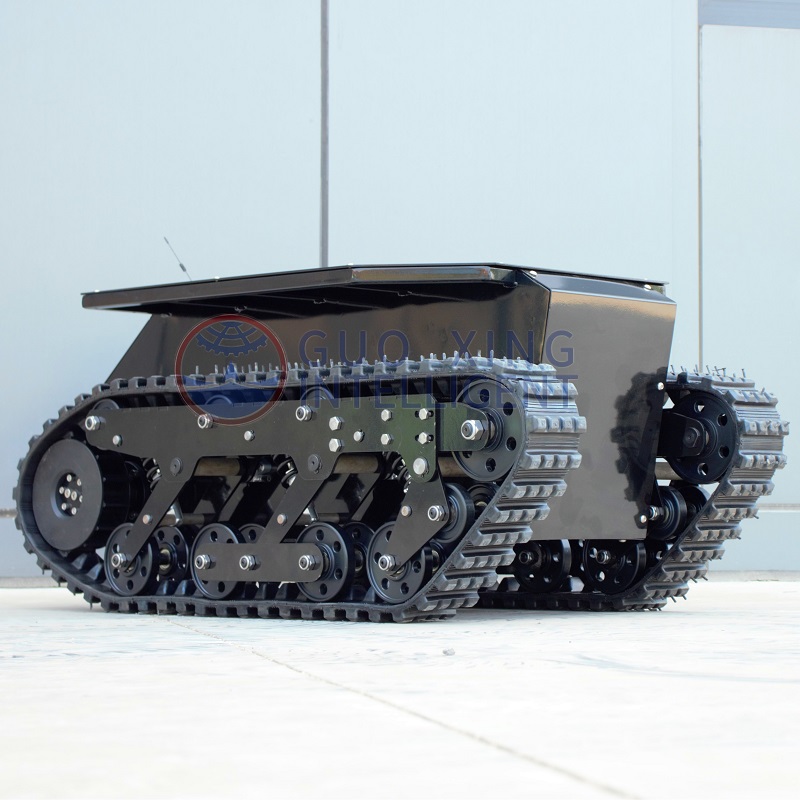

Safari-600T Mini


Crawler type differential mechanical mechanism is adopted,

which has strong terrain adaptability and is specially designed for special operating environment.


It has the characteristics of differential rotation, strong load capacity, low mechanical loss and high protection level.




Key Features


  • Large support area, small sinking degree

  • Suitable for soft and muddy ground

  • Excellent cross-country

  • Turn in place

  • Greater traction pull.

  • 30 degree climbing ability

  • Able to climb slopes, stairs & surmounting obstacles

  • Stainless steel vehicle , solid & durable

  • Heavy load duty 100kgs





Support CAN BUS protocol


Customize a variety of advanced operation modes, provide motion control CAN protocol, and support secondary development.

  1. Large space platform is reserved for quick building top load(sensing, industrial control, routing, camera, etc)

  2. Supports customized design of sensor AI profile bracket.

  3. Widely used for the development of special robots such as

  • Patrol inspection

  • Exploration

  • Rescue

  • Explosive disposal

  • Special shooting

  • Special transportation




Product Parameter


尺寸表

Model Safari 600T Safari 600T Mini
Dimensions 1020*760*360mm 1000*570*450mm
Interior Size 510*290*220mm 450*180*300mm
Self Weight 100KGS 138KGS
Load Weight 80KGS 100KGS
Height of Chassis

Rated Torque 60NM 90NM
Body Material Carbon Steel
Max Angle of climbing 40 Degrees 30 Degrees
(Able to climb stairs)
Operating Speed 0~1.4m/s 0~1.1m/s
Max Obstacle 170mm 140mm
Track Material Quality Rubber embed with with Kevlar fiber
Suspension System Christie suspension
Vibration Reduction 6 Independent vibration absorbers on both sides
Protection Grade IP54(Optional IP67)
Motor 48V DC Brushless motor
Product Application Fire Fighting,EOD,Patrol Inspection,Detection,Military


Product video




Customer case


MINI底盘案例

How to buy a best suitable robot platform for your project?

1: Tell us what is the purpose for the purchase.

2: Tell us your requirements for the robot platform, such as load weight, obstacle-surmount, and other special requirements.

3: Tell us the quantity for the purchase.

4: Just feel free to contact us!
