SAFARI-880T
GUOXING
| Load Weight: | |
|---|---|
| Max Speed: | |
| Application: | |
| Quantity: | |

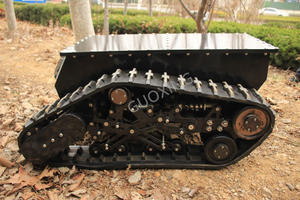

The SAFARI-880T tracked robot chassis is designed to provide a reliable mobile solution for robots operating in complex environments. It combines compact structure, strong load-bearing performance, high mobility, and flexible development capability.
The platform can be equipped with different devices to realize various robotic functions. Depending on the application, users can install cameras, sensors, robotic arms, detection modules, fire extinguishing equipment, communication systems, industrial control units, or AI computing modules on the chassis.
With excellent passing ability and cross-country performance, the SAFARI-880T can move through areas that are difficult for ordinary wheeled platforms to access. Its crawler drive system makes it suitable for stairs, slopes, rough ground, industrial sites, emergency scenes, and outdoor terrain.
The rubber crawler drive system provides strong ground contact and stable traction. The chassis can climb stairs, cross obstacles, and travel across uneven terrain, making it ideal for inspection, patrol, rescue, and field operation robots.
The Christie + Matilda four-wheel balanced suspension system and six independent vibration absorbers help reduce vibration and terrain impact during movement. This protects sensitive mounted equipment such as cameras, sensors, lidar, robotic arms, and control modules.
The SAFARI-880T supports CAN BUS communication protocol, allowing developers to integrate it into customized robotic systems. It is suitable for universities, research institutes, robot manufacturers, system integrators, and industrial automation developers.
The chassis provides reliable load-bearing capability for different upper structures and mission modules. It can be used as a mobile base for patrol inspection robots, EOD robots, firefighting robots, detection robots, and other special robots.
With strong mobility and customization capability, the 880T tracked chassis can be used in industrial automation, warehousing, healthcare assistance, security patrol, scientific research, education, emergency rescue, and special operation scenarios.
The 880T enhanced tracked robot chassis platform is widely used in:
Patrol inspection robots
Firefighting robots
EOD and explosive disposal robots
Rescue robots
Industrial inspection robots
Security surveillance robots
Exploration robots
Special transportation robots
Robotic arm mobile platforms
Research and development platforms
Education and training robots
AI mobile robot development platforms
| Model | Safari 880T | |
| Dimensions | 1010*720*435mm | |
| Interior Size | 320*275*248mm | |
| Self Weight | 135KGS | |
| Load Weight | 120KGS | |
| Height of Chassis | 140mm | |
| Rated Torque | 82NM | |
| Body Material | Stainless Steel | |
| Max Angle of climbing | 40 Degrees(Able to climb stairs) | |
| Operating Speed | 0~1.6m/s | |
| Max Obstacle | 200mm | |
| Track Material | Quality Rubber embed with with Kevlar fiber | |
| Suspension System | Christie and Matilda four wheel balance version | |
| Vibration Reduction | 6 Independent vibration absorbers on both sides | |
| Protection Grade | IP54(Optional IP67) | |
| Motor | 48V DC Brushless motor | |
| Product Application | Fire Fighting,EOD,Patrol Inspection,Detection | |
The SAFARI-880T tracked robot chassis supports customized development according to project requirements, including:
Sensor mounting bracket customization
AI module mounting design
Camera and vision system integration
Industrial control system integration
Router and communication module installation
Robotic arm mounting
Detection equipment integration
Special-purpose upper platform development
IP67 protection upgrade
Application-specific appearance and structure customization
GUOXING is a professional manufacturer of special robots and robot mobile chassis platforms. The company provides tracked robot chassis, wheeled chassis, firefighting robots, EOD robots, inspection robots, and customized unmanned ground vehicle solutions for complex and high-risk environments.
The SAFARI-880T is designed for system integrators and robot developers who need a durable, flexible, and all-terrain mobile platform. With strong mobility, stable suspension, CAN BUS support, and customization capability, it helps customers quickly build special-purpose robots for industrial, security, emergency, and research applications.
Patrol inspection robot
Mechanical arm robot
Fire fighting robot
1: Tell us what is the purpose for the purchase.
2: Tell us your requirements for the robot platform, such as load weight, obstacle-surmount, and other special requirements.
3: Tell us the quantity for the purchase.
4: Just feel free to contact us!
If you're interested in learning more or have any questions, please feel free to leave us a message. We'd love to hear from you!
The SAFARI-880T is used as a tracked mobile base for patrol inspection robots, firefighting robots, EOD robots, rescue robots, research robots, robotic arm platforms, and other special-purpose unmanned ground vehicles.
The standard load weight is 120 kg. The product material also describes a load range of 100–260 kg, so the final payload can be confirmed according to project configuration and customization requirements.
Yes. The SAFARI-880T can climb stairs and slopes up to 40°, making it suitable for complex indoor and outdoor environments.
Yes. The platform supports CAN BUS protocol and provides motion control communication support, making it suitable for secondary development and customized robot integration.
The SAFARI-880T adopts a Christie + Matilda four-wheel balanced suspension system with six independent vibration absorbers for improved terrain adaptability and shock reduction.
Yes. With rubber crawler tracks, stainless steel body, IP54 protection grade, and optional IP67 protection, it can be used in outdoor and complex environments.
Yes. The chassis has reserved upper mounting space and can be customized for cameras, sensors, AI modules, robotic arms, industrial control systems, and communication devices.
It can be used in firefighting, emergency rescue, EOD, inspection, patrol, logistics, education, research, industrial automation, surveillance, and special transportation applications.
