SAFARI-880T
GUOXING
| Load Weight: | |
|---|---|
| Max Speed: | |
| Application: | |
| Quantity: | |
The GUOXING Safari 880T is an economic, high-load electric rubber track robot chassis (UGV mobile platform), engineered to set new benchmarks for off-road mobility and stability in complex, harsh environments. Purpose-built for heavy-duty industrial and special applications, this crawler robot chassis delivers a 120kg rated load capacity (max 260kg), 40° climbing ability, and 0~1.6m/s adjustable speed, with an innovative Christie+Matilda four-wheel balance suspension system for superior terrain adaptability. Widely used for developing firefighting, EOD, inspection and rescue robots, it supports CAN BUS protocol, full secondary development, and customizable configurations to meet your specialized project requirements.
Engineered to perform reliably in the most challenging conditions, the Safari 880T features an innovative Christie+Matilda four-wheel balance suspension system, paired with 6 independent vibration absorbers mounted on both sides of the chassis. This design minimizes vibration during heavy-load operation, ensuring stable movement even on uneven, soft, muddy, or debris-strewn terrain. With a 200mm maximum obstacle surmounting capacity, 40° climbing ability, and full in-situ steering function, this chassis effortlessly climbs stairs, crosses trenches, and navigates complex ruins, making it ideal for high-risk missions where consistent mobility is non-negotiable. The high-quality rubber track embedded with Kevlar fiber delivers exceptional traction, a large support area, and minimal sinking, extending service life while maintaining reliable performance in outdoor and industrial settings.
Built to withstand rigorous long-term use, the Safari 880T features a full stainless steel body for exceptional impact resistance, corrosion resistance, and structural durability. With a 135kg self-weight, it delivers a 120kg rated load capacity, with a maximum load capacity of up to 260kg, providing ample space and weight support for mounting a wide range of upper equipment, including sensors, industrial control devices, cameras, mechanical arms, firefighting water cannons, and EOD tools. The chassis comes standard with an IP54 protection grade, with an optional IP67 upgrade available for dust-tight and water-immersed environments, ensuring reliable operation in rain, dust, and other harsh outdoor conditions. This industrial-grade construction reduces long-term maintenance costs and extends service life, delivering exceptional ROI for industrial projects and large-scale deployments.
Designed to streamline your robot development process, the Safari 880T offers fully customizable advanced operation modes and native support for CAN BUS protocol, with an open motion control CAN protocol for seamless secondary development. The spacious mounting platform is optimized for quick installation of top-load equipment, with support for tailored sensor and AI profile bracket designs to fit your unique project needs. It is fully compatible with ROS systems, reducing technical barriers for system integrators and project engineers, and cutting down development cycles for specialized robot projects. Whether you need standard mass deployment or fully customized configurations for non-standard projects, this chassis adapts to your requirements with maximum flexibility.
Powered by a 48V DC brushless motor with 82NM rated torque, the Safari 880T delivers smooth, efficient, and maintenance-free power, with an adjustable operating speed range of 0~1.6m/s to match different mission requirements. The high-torque drive system delivers exceptional traction for heavy-load climbing and obstacle crossing, while the precise motion control system ensures accurate, stable movement for high-precision tasks such as explosive disposal, firefighting, and precision inspection. The brushless motor design reduces noise and energy consumption, making it ideal for long-duration patrol and inspection missions without frequent power replacement.
Below are the complete technical parameters of the Safari 880T crawler robot chassis. For custom parameter adjustments or project-specific configurations, please contact our engineering team directly.
Parameter | Specification |
Model | Safari 880T |
Overall Dimensions | 1010×720×435mm |
Interior Size | 320×275×248mm |
Self Weight | 135KGS |
Rated Load Weight | 120KGS (Max 260KGS) |
Chassis Ground Clearance | 140mm |
Rated Torque | 82NM |
Body Material | Stainless Steel |
Max Climbing Angle | 40 Degrees (Able to climb stairs) |
Operating Speed | 0~1.6m/s |
Max Obstacle Surmounting Height | 200mm |
Track Material | High-Quality Rubber Embedded with Kevlar Fiber |
Suspension System | Christie and Matilda Four Wheel Balance Version |
Vibration Reduction | 6 Independent Vibration Absorbers on Both Sides |
Protection Grade | IP54 (Optional IP67) |
Drive Motor | 48V DC Brushless Motor |
Core Applications | Fire Fighting, EOD, Patrol Inspection, Detection, Rescue, Exploration |

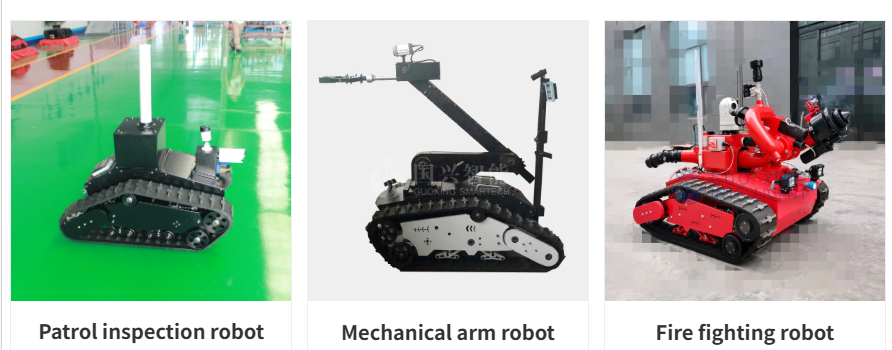

The Safari 880T crawler robot chassis is a versatile mobile platform that can be equipped with a wide range of top-mounted devices to build specialized robots for multiple heavy-duty and high-risk industries. It has been field-proven in hundreds of projects worldwide, delivering reliable performance for industrial clients, system integrators, and engineering firms. Below are our core application scenarios and tailored solutions:
High-risk firefighting and rescue missions demand a chassis that can navigate burning buildings, collapsed ruins, and toxic environments without putting human lives at risk. The Safari 880T’s exceptional stair-climbing ability, obstacle surmounting performance, and heat-resistant stainless steel body make it the ideal base for firefighting robots, smoke exhaust robots, and emergency rescue robots. It can be equipped with water cannons, thermal imaging cameras, gas sensors, and rescue tools to support remote fire suppression, victim detection, and on-site reconnaissance.
EOD missions require millimeter-level precision, stable movement, and reliable performance in high-risk environments. The Safari 880T’s precise motion control, in-situ steering, and heavy-load capacity allow it to carry EOD manipulators, X-ray detection devices, and disruption tools, enabling remote, safe handling of explosive devices. Its low-vibration suspension system ensures stable operation of high-precision detection equipment, eliminating the risk of false readings or mission failure in critical scenarios.
For long-duration patrol and inspection missions in power plants, mines, oil and gas facilities, and border areas, the Safari 880T delivers exceptional energy efficiency, all-terrain mobility, and durable construction. It can be equipped with HD cameras, gas detectors, temperature sensors, and AI recognition systems to build autonomous patrol robots, pipeline inspection robots, substation inspection robots, and border patrol robots. Its customizable mounting platform and secondary development support allow for seamless integration with your existing monitoring and control systems, reducing deployment costs and improving inspection efficiency.
For geological exploration, environmental monitoring, and specialized material transportation in harsh, inaccessible areas, the Safari 880T’s off-road performance and heavy-load capacity provide a reliable mobile solution. Its low-sinking rubber track ensures stable movement on soft soil, snow, and muddy terrain, while its stainless steel body and optional IP67 protection allow it to operate in extreme weather and environmental conditions. It can be customized to carry exploration equipment, environmental sampling tools, and specialized cargo for remote, unmanned missions.
We understand that every project has unique requirements, and we offer full end-to-end support for industrial clients, system integrators, wholesale buyers, and engineering partners to ensure your project’s success. Our flexible service and partnership options include:
Hardware customization: Adjustable protection grade, power configuration, chassis size, track material, and mounting interface to fit your project needs
Software customization: Tailored control protocol development, ROS system adaptation, and autonomous navigation function integration
Structural customization: Custom-designed mounting brackets, sensor installation positions, and internal wiring layouts for seamless equipment integration
Bulk wholesale orders with tiered pricing for large-scale deployments
OEM and ODM solutions for brand-specific customization
Custom project development for non-standard, specialized applications
Global distribution partnership opportunities for qualified regional partners
Pre-sales technical consultation and project feasibility assessment from our in-house engineering team
Full technical support and documentation for secondary development and integration
Prototype sample application for field testing and validation
After-sales maintenance support and spare parts supply for long-term reliable operation
The Safari 880T has a rated load capacity of 120KGS, with a maximum load capacity of up to 260KGS, making it suitable for mounting a wide range of industrial and special equipment.
Yes. The chassis features a 40° maximum climbing angle, can easily climb standard stairs, and has a maximum obstacle surmounting height of 200mm, with an advanced suspension system for stable movement during obstacle crossing.
Yes. The Safari 880T natively supports CAN BUS protocol, with an open motion control CAN protocol for full secondary development. It is also fully compatible with ROS systems, with complete technical documentation to support your development work.
The chassis comes standard with an IP54 protection grade, with an optional IP67 upgrade available for projects that require dust-tight and water-immersed protection.
We offer full hardware, software, and structural customization for bulk orders and custom projects, including adjustable chassis parameters, custom mounting designs, protocol adaptation, and OEM/ODM solutions. Our engineering team will work with you to tailor the chassis to your exact project requirements.
