Building an autonomous machine to tackle flames presents a unique engineering challenge. You must carefully bridge a massive gap between autonomous navigation, environmental sensing, and mechanical payload delivery. Moving from a rough conceptual design to a functional prototype requires methodical planning. You want a reliable autonomous system capable of actively detecting and extinguishing a localized flame. Achieving this requires more than just connecting wires to a board.
This comprehensive guide focuses primarily on microcontroller-based prototyping. We use platforms like Arduino to demonstrate core integration principles. You will explore practical hardware procurement, critical integration realities, and rigorous system testing. We highlight common pitfalls engineers face during early development stages. We also detail how you can transition basic components into a cohesive, responsive machine. By following these structured methodologies, you can confidently navigate the complexities of robotics assembly.
Successful deployment relies on isolating the power supply of the water pump and motors from the microcontroller to prevent system resets.
Infrared (IR) flame sensors offer the most cost-effective detection for prototypes but require strict calibration against ambient light interference.
Choosing between a pre-packaged DIY kit and custom component procurement depends on your need for rapid proof-of-concept versus architectural flexibility.
The logic architecture must prioritize a clear sequence: environment scanning, precise alignment, and controlled extinguishing.
Before buying components, you must define exact operational parameters. Outlining these constraints early prevents costly redesigns later. A clear project scope anchors your hardware choices to realistic expectations.

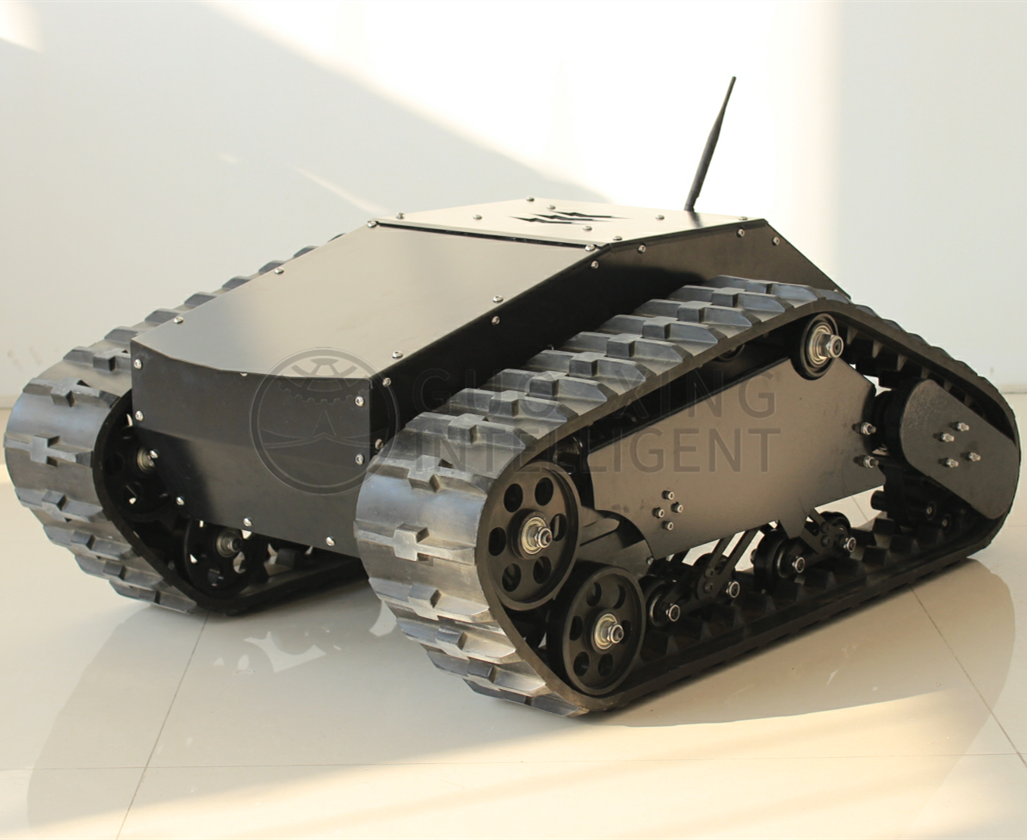

Physical limitations dictate overall chassis design. First, define the water payload capacity. Water is heavy. Carrying a large reservoir demands high-torque motors. Next, evaluate terrain compatibility. Wheeled chassis work well on flat laboratory floors. Tracked platforms handle uneven outdoor environments better. Finally, calculate your expected battery life under peak load. Driving heavy motors alongside a water pump drains standard cells rapidly.
Sensors serve as the eyes of your firefighting robot. Establish a strict required sensor range. Typical infrared (IR) sensors detect flames between one to three feet away. You must also determine an acceptable field of view (FOV). A narrow FOV requires the autonomous scanning phase to rotate the chassis frequently. A wider FOV allows faster room scanning but might compromise pinpoint accuracy.
Assess your primary goal for this build. Different environments demand different reliability standards.
Educational Demonstration: Prioritizes visible logic steps and accessible code.
Competitive Robotics Event: Focuses heavily on speed, weight reduction, and rapid extinguishing.
Industrial Proof-of-Concept: Requires robust components meant for rigorous scaling and extended testing.
Selecting the right brain and muscles for your machine determines its ultimate capability. You must balance processing speed against power consumption.
You must compare standard logic boards against single-board computers (SBCs). Arduino Uno or Mega boards excel at real-time sensor polling. They execute simple loops without operating system overhead. Single-board computers offer advanced vision capabilities. However, real-time processing remains vital. Immediate actuator response often makes microcontrollers the superior choice for early prototypes.
Flame detection relies on capturing specific light wavelengths. You must evaluate 3-pin versus 4-pin IR flame sensors. Three-pin sensors typically offer simple analog outputs. Four-pin variants provide an adjustable digital threshold alongside the analog signal. The digital pin triggers a clean high/low state based on onboard potentiometer settings. Furthermore, you cannot rely solely on IR sensors. You must integrate ultrasonic sensors. Obstacle avoidance during the initial search phase prevents collisions. A robot stuck against a wall cannot reach the fire.
Your robot needs dedicated drivers to handle high currents. You must assess L298N versus L293D motor drivers. The L298N handles larger chassis motors efficiently. It provides adequate heat dissipation. The L293D works for smaller, lightweight applications. You also need to power the water pump simultaneously. Review DC water pump specifications carefully. Standard 5V submersible pumps draw significant current upon startup.
You face a fundamental sourcing decision early on. Weigh the predictability of buying a complete DIY kit against custom procurement.
Pre-packaged Kits: Guarantee component compatibility. They accelerate your initial proof-of-concept timeline.
Custom Builds: Provide unmatched architectural flexibility. They allow you to swap specific sensors or upsize motors easily.
Many builders assemble perfect code but fail at electrical integration. Proper power distribution dictates system stability.
Implementation realities often reveal severe voltage drops. When a DC motor or water pump activates, it pulls massive instantaneous current. If you share this power source, the logic board experiences a sudden voltage dip. This brownout causes erratic behavior or complete system resets. You must emphasize power isolation. Power high-current draw components independently from the microcontroller. Use dual battery packs or robust step-down converters to guarantee logic stability.
Your schematic hierarchy must remain organized. Route sensor logic directly to analog or digital pins. Map pulse-width modulation (PWM) pins strictly to motor control. Variable speed is crucial for precise alignment. If you hardwire motors to standard digital pins, the robot will jerk violently. Jerky movements make aligning the nozzle nearly impossible.
Combining water delivery systems alongside exposed prototype electronics introduces massive risks. A single leak destroys weeks of work. You must plan for physical shielding. Create water-tight compartments for the battery and microcontroller. Use silicone sealant around tube connections. Keep the water reservoir physically separated from the main circuit board.
Component Category | Recommended Voltage | Power Source Strategy | Key Consideration |
|---|---|---|---|
Logic Board (Arduino) | 7V - 9V | Dedicated 9V Battery or 2S LiPo | Maintain steady voltage to prevent resets. |
Chassis DC Motors | 6V - 12V | High-capacity LiPo Pack (Shared) | Use PWM via L298N for speed control. |
Submersible Water Pump | 5V - 9V | High-capacity LiPo Pack (Shared) | Requires relay or MOSFET for safe switching. |
IR & Ultrasonic Sensors | 5V | Powered directly from Logic Board 5V pin | Keep wire runs short to minimize signal noise. |
Software dictates how hardware interprets the environment. You need a structured approach to prevent chaotic behavior.
Structure your code using a simple finite state machine framework. This prevents conflicting commands.
Search Mode: The chassis rotates slowly. Ultrasonic sensors ping for obstacles. IR sensors sweep for light signatures.
Alignment Mode: The sensors detect a flame. The robot stops random movement. It pivots specifically to center the strongest IR reading.
Extinguish Mode: The robot halts completely. It activates the relay, triggering the pump to release water.
Sunlight or bright incandescent bulbs trick basic sensors. You must implement debouncing and sustained-reading logic in your code. Do not let the robot trigger the pump instantly. Force the code to read a positive flame signature for at least two consecutive seconds. This ensures the robot does not dump water due to momentary IR reflections.
Precise alignment requires proportional logic. As the strongest flame signature moves toward the center sensor, motor speed should decrease. This prevents the robot from overshooting the target. Once perfectly centered, the logic board triggers the relay driver for the water pump. A brief delay before pumping ensures the chassis has stopped swaying.

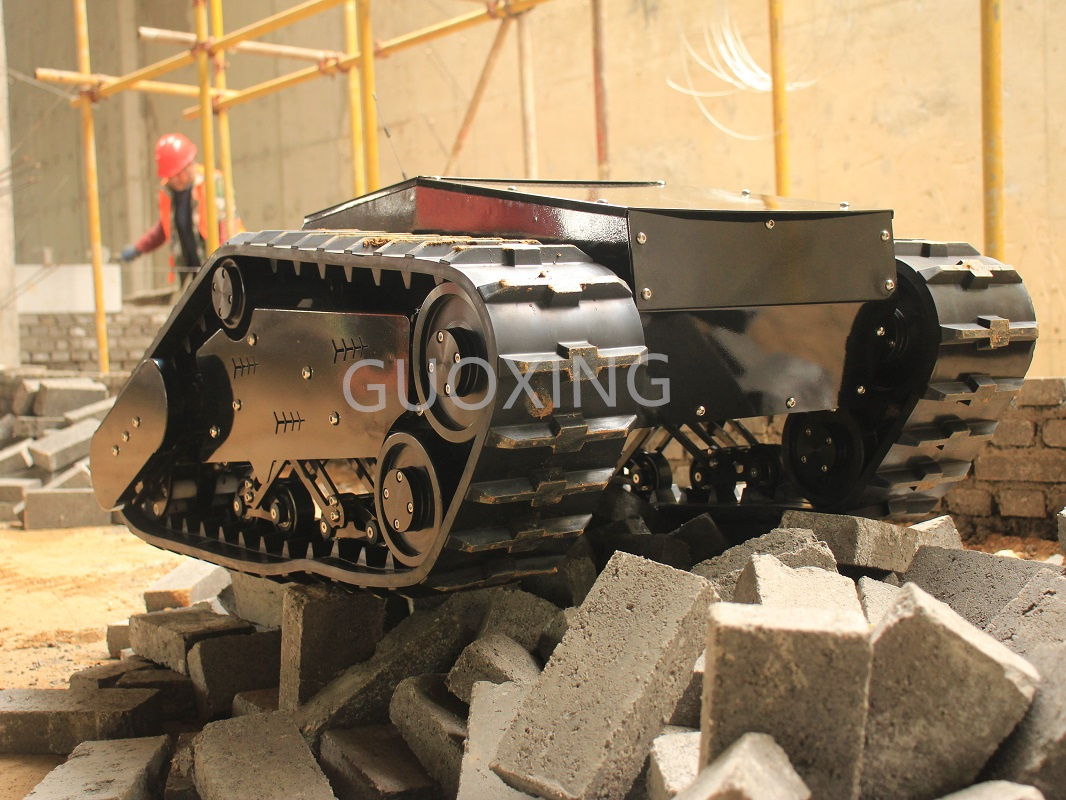

Theoretical designs rarely survive initial real-world trials. Rigorous testing separates functional machines from desk ornaments. Building a robust fire fighting robot demands patience during the final tuning phases.
Never calibrate sensors in a dark room if the final demonstration happens outdoors. You must explain how to tune the potentiometers on IR sensors in the exact target operating environment. Adjust the small dial on the 4-pin sensor to map baseline infrared noise. Turn the dial until the digital output LED just barely shuts off under normal lighting. This sets your ambient threshold.
Never introduce water during the first dozen test runs. Advise testing motor navigation and sensor triggers using LED indicators instead. Wire a bright red LED to the pump relay pin. Wave a lighter in front of the machine. When the robot aligns and the red LED illuminates, you know the code works. This dry-run method saves your electronics from accidental flooding.
Anticipate typical adoption hurdles. A massive failure point involves weight. Builders often calibrate motor PWM speeds while the water reservoir is empty. Once full, the chassis weight easily exceeds motor torque at low speeds. The robot stalls instead of turning. Another frequent issue involves blind spots. Improper sensor angling creates gaps in the field of view. Ensure your IR sensors fan out slightly to overlap their detection zones.
Moving past the initial prototype requires deliberate procurement choices. You need to know exactly where to allocate your budget.
Provide criteria for finalizing your bill of materials (BOM). You must know where to over-spec. Always buy a higher-capacity LiPo battery than you think you need. Invest in high-torque gear motors. Conversely, you know exactly where to save. A standard structural chassis cut from basic acrylic works perfectly well. Do not overspend on carbon fiber for a desk prototype.
Once your base state machine functions, plan for future scalability. Consider integrating thermal imaging cameras like the AMG8833. Thermal imaging maps heat signatures far more accurately than basic IR sensors. You might also add IoT modules for remote status reporting. An ESP8266 chip can broadcast telemetry data to a dashboard, detailing pump status and battery health.
Building a reliable autonomous system requires a holistic approach. It remains an exercise in precise integration, not just simple component assembly. Every sensor wire, power trace, and line of code must work together seamlessly. Your success hinges on anticipating failure points before they happen.
Minimize your risks by prioritizing strict power management. Keep your logic board electrically isolated from your heavy actuators. Commit fully to rigorous dry-run testing before full deployment. Validate every motor movement using LEDs before you ever fill the reservoir. By applying these disciplined engineering practices, you will transition your conceptual design into a highly capable, functioning prototype.
A: The Arduino Uno or Arduino Mega remains the best choice for initial prototypes. They provide excellent real-time processing capabilities, numerous analog/digital pins, and lack operating system overhead. This guarantees immediate actuator response when a flame is detected.
A: Standard IR sensors struggle with bright sunlight because both emit infrared radiation. You differentiate them through strict hardware calibration using onboard potentiometers and software debouncing. By coding the robot to require sustained, high-intensity readings, you filter out ambient sunlight reflections.
A: No, you should not share a standard 9V battery. Water pumps draw high instantaneous current. This sudden draw causes a severe voltage drop, leading the Arduino to brownout and reset repeatedly. Always isolate their power supplies.
A: Pre-built chassis kits guarantee component alignment and mechanical stability right out of the box. They save significant time on structural troubleshooting. 3D-printed chassis offer customization but often suffer from warping, layer splitting under weight, or imprecise motor mounts.
A: Perform extensive dry-run testing first by substituting the water pump trigger for an LED indicator. When you finally introduce water, place the microcontroller and batteries inside sealed, water-tight plastic enclosures. Apply silicone sealant to all tubing connections.
