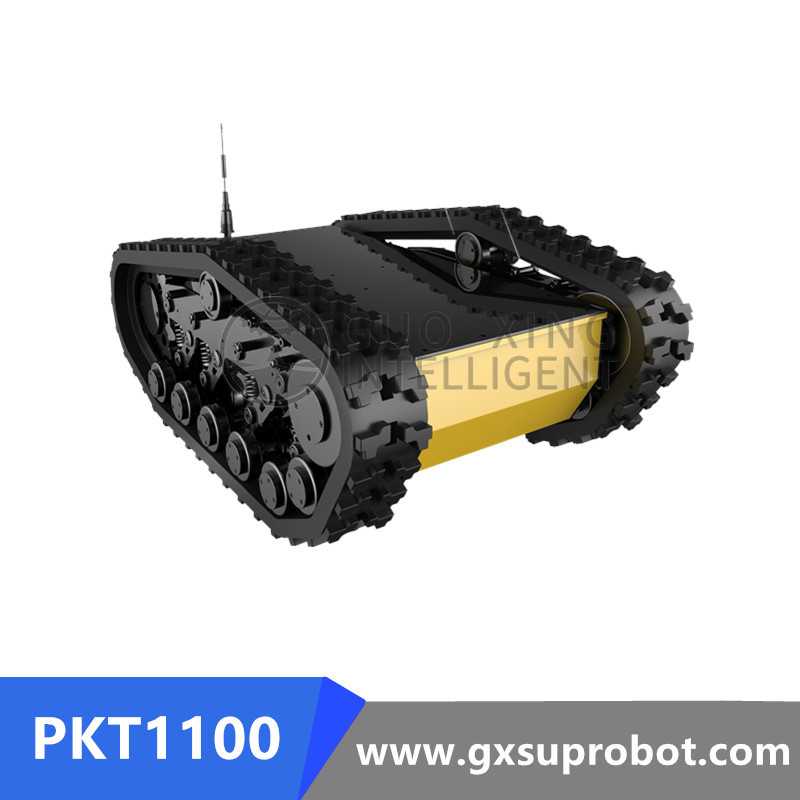

Creating a functional machine presents thrilling engineering hurdles. You face the dual challenge of integrating reliable autonomous navigation while ensuring precise environmental hazard detection. This project goes far beyond a simple coding exercise. It stands as a rigorous hardware engineering problem. You must carefully evaluate power distribution, sensor accuracy, and payload management to succeed. A single misstep in component selection can easily derail your entire build. We established this guide to help you overcome these exact hurdles. You will learn how to navigate the transition from theoretical schematics to a functional, real-world prototype. Following these steps ensures you build an effective fire fighting robot without wasting your budget on incompatible parts. We cover everything from core system architecture to writing state-machine logic. You can finally transform a basic idea into a highly capable autonomous platform.
Modularity is Critical: A successful firefighting robot separates the locomotion, detection, and extinguishing systems to prevent power drops and logic errors.
Sensor Calibration dictates Success: Off-the-shelf IR flame sensors require environmental tuning to avoid false positives from ambient light.
Build vs. Buy: Sourcing individual components offers maximum customization, while pre-packaged DIY kits provide guaranteed compatibility for strict project deadlines.
Power Management: Extinguishing mechanisms (especially water pumps) create high current draws that mandate isolated power supplies away from the logic board.
You must clearly define success criteria before purchasing any hardware. A well-designed robot requires specific, measurable goals. First, it needs autonomous room navigation to traverse unknown layouts without human intervention. Second, it demands accurate 360-degree fire detection to locate hazards quickly. Finally, it requires successful suppression within a specific timeframe. You cannot achieve these goals using a disorganized build process. Establishing strict performance baselines ensures your machine operates reliably under simulated emergency conditions.
A structured input/output framework dictates how the machine interacts seamlessly into its environment. You can categorize this framework into three distinct layers:
Perception (Inputs): This layer acts as the eyes and ears of the machine. It utilizes infrared flame sensors to detect heat signatures. You also incorporate ultrasonic sensors or LiDAR for obstacle avoidance. These inputs continuously feed environmental data to the main processor.
Processing (Logic): The microcontroller serves as the brain. It handles interpretation and manages state-machine transitions. The code analyzes incoming sensor arrays, calculates distances, and decides the next movement.
Actuation (Outputs): This layer executes physical commands. It includes motor drivers for chassis movement and relay modules for the extinguishing payload. The processor sends digital signals here to turn wheels or activate suppression tools.
Choosing the right suppression mechanism significantly alters your chassis design and power requirements. You must compare the mechanical simplicity of a DC fan against the complexity and weight of a water pump system. A DC fan simply requires a basic transistor circuit and introduces negligible weight. However, it only extinguishes small candle flames. Conversely, a water pump provides realistic suppression capabilities. It also introduces liquid weight, requires silicon tubing, and demands high-current relays.
Payload Mechanism | Mechanical Complexity | Weight Impact | Power Draw | Suppression Range |
|---|---|---|---|---|
DC Propeller Fan | Low (Direct mounting) | Minimal (<50g) | Low (200mA - 500mA) | Close range (Candles) |
Submersible Water Pump | High (Tanks, tubing, nozzles) | High (Fluid dependent) | High (1A - 3A+) | Medium range (Small fires) |
Selecting reliable components dictates the long-term viability of your project. We highly recommend evaluating each part against your defined success criteria. Below, we detail the primary components you need to source.
Microcontroller Selection: The Arduino Uno serves perfectly for standard single-room prototypes. It offers sufficient digital pins for basic logic. However, you should consider the Arduino Mega or Raspberry Pi for complex multi-sensor arrays and advanced pathfinding. The Mega provides multiple hardware serial ports and extra interrupts. These additions prove invaluable when managing complex obstacle avoidance routines.
Flame Detection Sensors: You need reliable perception tools. Standard 3-pin or 4-pin IR flame sensors detect wavelengths between 760nm and 1100nm. The 4-pin variants offer both analog and digital outputs. We recommend using the analog pins. They allow you to read variable intensities and determine the exact distance to the heat source.
Motor Controllers: Moving the chassis requires capable motor drivers. Many beginners use the L298N Dual H-Bridge for standard DC gear motors. It is cheap and widely available. However, it suffers from severe voltage drops and poor thermal management. You should assess more efficient modern alternatives like the TB6612FNG. It uses MOSFETs instead of bipolar junction transistors, resulting in less heat and better battery efficiency.
Power Supply Sourcing: Power architecture ruins more projects than bad code. Relying on a single 9V alkaline battery creates an immediate point of failure. These batteries cannot output the necessary current for motors and pumps simultaneously. You must transition to high-discharge 18650 Li-ion battery packs. A 2S (7.4V) or 3S (11.1V) lithium pack provides the raw amperage needed for simultaneous motor and pump operation.

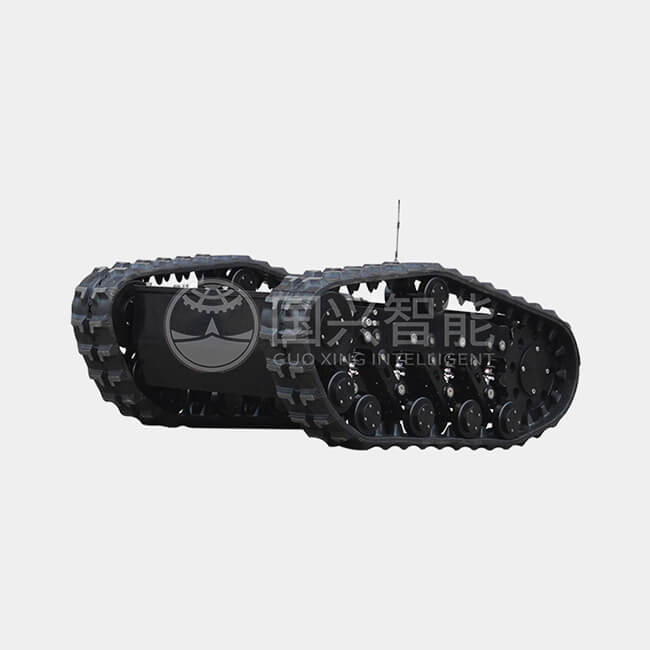

Building from scratch provides the best path for R&D evaluation and engineering rigor. You retain complete control over every millimeter of the design. This method requires individual component vetting and independent breadboard testing. You will likely utilize custom chassis fabrication methods, including 3D printing or laser-cutting acrylic. Prototyping this way teaches you the deep mechanics of electronics integration. However, it consumes significantly more time. You will face unexpected compatibility issues and mechanical alignment challenges.
Evaluating commercial off-the-shelf (COTS) educational kits offers an alternative route. These bundles arrive with everything needed to build a working prototype.
Pros: You get guaranteed component compatibility out of the box. They feature a pre-drilled chassis, saving hours of fabrication. This guarantees a faster time-to-completion, making them ideal for strict deadlines.
Cons: You suffer from vendor lock-in. These kits often feature limited scalability. They also restrict sensor placement because you must use their predefined mounting holes. You cannot easily swap a basic fan for a heavy water tank.
You must align your path with your end goals. Choose kits for fixed-timeline academic requirements. They guarantee you will have a working demonstration before grading day. Conversely, choose the scratch-built approach for scalable proof-of-concept industrial prototypes. If you intend to scale your design into a commercial machine, you must own the hardware architecture from day one.
Electrical noise easily disrupts logic boards. You must follow strict best practices for grounding multiple power sources to the microcontroller. Always employ a star grounding technique. Connect all ground wires to a single common point. This prevents ground loops and electrical interference. Furthermore, keep the motor power circuit entirely separated from the sensor power circuit. This isolation prevents logic resets during sudden pump activation.
A robust state machine dictates how the system behaves. Programming your logic in distinct states prevents conflicting commands.
Search Mode: The machine enters a routine for scanning the environment. It might execute a rotating 360-degree sweep or a wall-following algorithm. During this movement, it continuously reads the sensor arrays to detect infrared spikes.
Alignment Mode: Once it detects a target, it stops the search pattern. It uses proportional control to center the chassis facing the peak infrared signature. By comparing the left and right sensor values, it adjusts wheel speeds to face the hazard directly.
Suppression Mode: The system verifies proximity. It halts all movement and activates the relay for the pump or fan. The code includes a verification loop. It confirms fire extinction by reading the IR sensors again before resuming the search mode.
Infrared sensors possess a major vulnerability. You must address the common risk of IR sensors triggering false positives from windows or halogen lights. Sunlight contains massive amounts of infrared radiation. If your machine faces a window, it might attempt to extinguish the sun. You mitigate this risk via careful threshold calibration in the code. Read the ambient light levels during startup and set a dynamic baseline. Only trigger the alignment mode if the sensor reading spikes significantly above this calibrated ambient threshold.
Adding a water tank introduces fluid dynamics into your mechanical design. The liquid payload of a water-based firefighting robot shifts constantly during movement. This sloshing alters the center of gravity dynamically. It can reduce caster wheel efficiency and cause unexpected drifting. You must mount the water reservoir as low as possible on the chassis. Baffle plates inside the tank can help reduce liquid movement. Additionally, upgrade to high-friction rubber tires to maintain traction under the increased weight.
Many builders face a scenario where the machine navigates perfectly, finds the target, activates the pump, and immediately reboots. You are experiencing a massive voltage drop. Troubleshooting microcontroller reboots caused by the inductive load of the water pump turning on requires hardware fixes. Inductive loads pull huge inrush currents and send voltage spikes back through the line. We recommend implementing flyback diodes across the motor terminals. Furthermore, use optocoupler relays to physically isolate the pump's power circuit from the Arduino's logic circuit.
Successfully engineering an autonomous hazard-suppression machine requires meticulous planning. You must finalize your payload type early, deciding between a lightweight fan or a complex water system. Next, select the appropriate microcontroller and secure an isolated, high-discharge power supply to handle the electrical loads. Always rigorously test your sensors in controlled lighting before writing your final movement algorithms.
Your immediate next steps involve action. Order the BOM or evaluate specific DIY kits based on your timeline. Prototype the entire sensor array on a breadboard before attempting any chassis assembly. Finally, begin modular code testing. Write and test your search mode, alignment mode, and suppression mode separately before combining them into a unified state machine.
A: The Arduino Uno provides the best starting point for beginners due to its simplicity and vast library support. However, for advanced builds requiring multiple ultrasonic sensors, complex motor encoders, and PID control loops, the Arduino Mega is superior because it offers extra interrupts and I/O pins.
A: You should use a minimum of three sensors (left, center, right) to achieve directional awareness. For highly accurate 360-degree detection, a five-sensor array mounted in a semi-circle provides excellent proportional feedback for precise alignment.
A: Use a DC fan if you are building a lightweight academic project to extinguish candles. Choose a water pump if you want to build an advanced, realistic prototype capable of suppressing actual small-scale fires, but be prepared for complex power routing.
A: Inductive loads like water pumps draw massive inrush current upon startup, dropping the voltage across the entire system. This starves the logic board, causing a reset. You solve this by using an isolated battery for the pump and an opto-isolated relay.
A: No. Basic IR flame sensors flood with ambient infrared light from the sun outdoors, rendering them useless. Outdoor operation requires advanced thermal imaging cameras (like FLIR), heavy-duty chassis designs, and complex filtering algorithms to distinguish actual hazards from solar heat.
