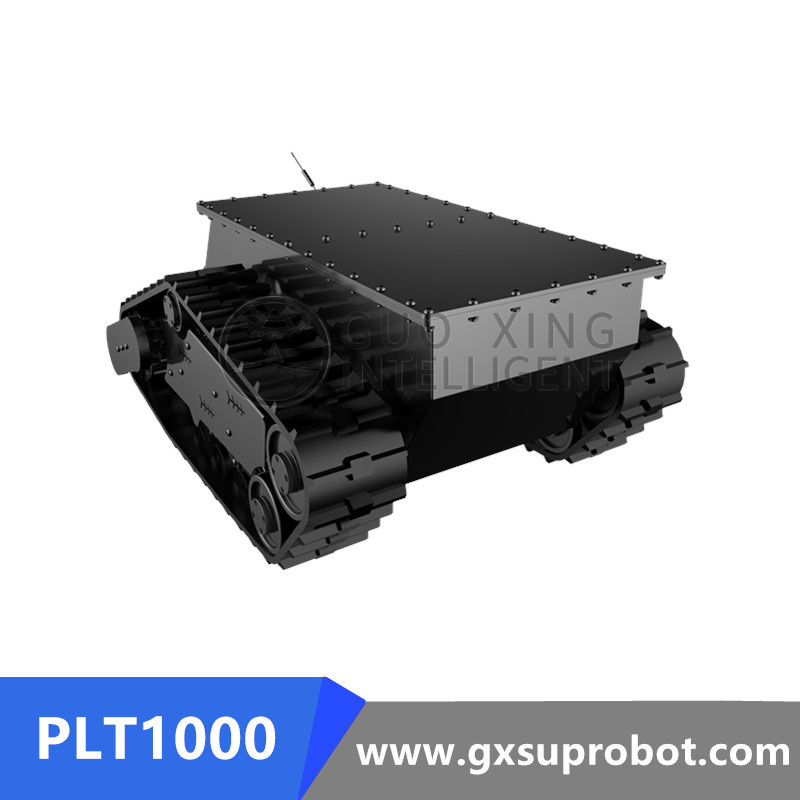

Custom Tracked Robot Platform For Firefighting And Rescue Robots

In firefighting and disaster rescue, the chassis is the single point of failure for operational robotics. If the base fails to navigate a 40-degree debris slope or succumbs to thermal stress, the payload becomes entirely useless. High-value sensors, water cannons, and manipulators cannot perform their functions without a reliable foundation. Off-the-shelf robotics kits are notoriously insufficient for these extreme realities. They quickly degrade under the intense thermal loads, deep moisture, and high-impact conditions typical of first-responder environments. First responders risk their lives relying on these machines. When a robot fails mid-mission, human operators must step into the hazard zone. This defeats the entire purpose of robotic deployment. For R&D teams and procurement engineers, selecting or specifying a Custom Tracked Robot Platform requires moving beyond basic load capacities. You must rigorously evaluate thermal resilience, integration flexibility, and field-serviceability. This guide explores critical evaluation dimensions, common procurement risks, and practical shortlisting strategies to ensure your robotic deployment succeeds.

Key Takeaways

• Application-Specific Geometry: Successful deployment relies on matching track mechanics (e.g., swing-arm mechanisms) to the specific obstacle profile of the deployment zone.
• Integration is Paramount: A viable firefighting robot chassis must offer open architecture (CAN bus, ROS compatibility) to minimize secondary development bottlenecks.
• Durability vs. Weight Trade-offs: High payload capacity must be balanced with center-of-gravity (CoG) management to prevent rollover in unpredictable terrain.
• Vendor Vetting Requires Evidence: Avoid vendors claiming "indestructible" platforms; prioritize those providing transparent Mean Time Between Failures (MTBF) data and modular repairability.

The Operational Reality: Why Standard Chassis Fail in Extreme Environments

Standard crawler chassis face rapid degradation in live operations. They encounter high heat, caustic chemical exposure, and intense water inundation. Commercial plastics and unshielded metals melt or corrode instantly. First responders cannot afford this mechanical fragility. Firefighting foams contain aggressive chemical surfactants. These surfactants reduce water surface tension. This chemical reaction allows moisture to penetrate microscopic gaps in poorly sealed enclosures. Standard commercial plastics become brittle. They crack under the extreme temperature fluctuations of an active fireground.

Thermal and moisture vulnerabilities represent massive operational roadblocks. Off-the-shelf motors rarely meet sustained IP67+ ratings. Electronics enclosures often leak under heavy water barrages. Active disaster zones demand absolute moisture defense. Without hermetically sealed components, the base unit will short-circuit. Internal control boards corrode rapidly when exposed to humid, caustic environments. You must protect the central processing unit from any airborne moisture.

Payload mismatch presents another severe operational problem. You might mount high-pressure monitors, thermal PTZ cameras, or casualty extraction stretchers on standard suspension systems. Standard springs cannot absorb these extreme dynamic loads. Water pressure recoil generates massive backward kinetic force. Casualty extraction stretchers add asymmetrical, shifting weight. When these dynamic forces overwhelm a generic suspension, the robot becomes entirely immobile. The tracks lose their tension, and the drivetrain halts.

Core Evaluation Dimensions for a Firefighting Robot Chassis

Calculating true payload requirements goes beyond static weight. You must account for dynamic recoil forces. High-pressure water cannons push violently against the chassis frame. We recommend factoring in at least a 40% buffer over your static weight load. This buffer absorbs unpredictable terrain impacts. Low center-of-gravity (CoG) designs prevent tipping. When climbing structural rubble, a high CoG leads to disastrous rollovers. You need heavy components mounted near the floor pan. Battery banks and drive motors should sit as low as possible to anchor the machine.

Material science dictates thermal hardening capabilities. Aviation-grade aluminum and reinforced steel alloys provide necessary rigidity. Typical commercial metals warp under intense ambient heat. We look for flame-retardant rubber or Kevlar composites for the tracks. Standard rubber turns to sludge at high temperatures. Internal drive motors require active or passive cooling. Heat sinks and thermal potting compounds protect critical copper windings. Engineers must route internal airflow to dissipate motor heat effectively.

Ingress Protection (IP) standards verify environmental resilience. You must demand true IP67 or IP68 ratings. Deep-water wading occurs frequently in flooded basements. Chemical foams easily penetrate inferior rubber seals. Particulate matter from collapsed structures will destroy unsealed planetary gears. Rigorous vacuum testing during manufacturing ensures absolute seal integrity. You should never accept verbal promises regarding water resistance. Demand documented immersion test results.

Mobility and Obstacle Clearance: The Role of Track Mechanisms

Track mechanics dictate mobility across hazardous zones. Track width and tread patterns determine your surface area grip. Wide tracks prevent sinking in loose mud. Aggressive tread lugs bite into oil-slicked concrete. Structurally compromised surfaces require maximum traction. You lose control immediately if treads slip on wet debris. We advise evaluating the durometer rating of the track material. The material must balance tactical grip against long-term abrasion resistance.

Swing-arm mechanisms are critical for vertical obstacle negotiation. They act as dynamic levers during complex climbs. Single or dual swing-arms help the robot traverse variable-height rubble. They lift the main chassis over severe architectural obstacles. Independent asynchronous swing-arms provide exceptional terrain adaptation. You must evaluate the mechanical reliability of these moving joints. Actuator strength determines if the swing-arm can lift a fully loaded unit. Weak actuators stall during crucial vertical ascents.

Clearance angles define your urban search and rescue (USAR) capabilities. Ground clearance must prevent high-centering on concrete blocks. Approach angles dictate the maximum incline the tracks can engage without hitting the nose. Departure angles prevent the rear hull from dragging during steep descents. As you configure a Custom Tracked Robot Platform, firefighting robot chassis geometry must prioritize these precise angles. A poor break-over angle will strand the robot on the crest of a debris pile.

Secondary Development: Developer-Friendly Integration Capabilities

Secondary development should not create engineering bottlenecks. Look for pre-drilled mounting matrices. Modular top-plates allow rapid swapping of payloads. You should never drill into the main sealed hull. Drilling voids structural integrity and compromises IP ratings. Mechanical modularity keeps your R&D focused on sensors. It eliminates the need for expensive custom metal fabrication. Standardized bolt patterns accelerate prototyping phases significantly.

Electrical and control architecture must support your software stack. Open communication protocols are strictly necessary. R&D teams require CAN bus or RS232/485 access. ROS (Robot Operating System) compatibility speeds up autonomous navigation programming. It prevents software teams from writing basic motor drivers from scratch. Dual-battery isolation systems ensure operational safety. You must separate drive-train power from critical sensor power. If drive motors draw massive current during a climb, your LiDAR should never reboot.

Sensor agnosticism ensures long-term platform viability. The chassis must allow seamless mounting of diverse environmental sensors. You will likely integrate LiDAR, thermal imaging, and gas detection modules. Standardized payload rails simplify sensor calibration. The control board must provide adequate isolated voltage outputs for these peripherals.

Architecture Comparison: Standard vs. Developer-Ready

Implementation Realities and Procurement Risks

Vendors often claim their platforms are "indestructible." You must discard these absolute invulnerability claims. Every robot breaks under enough structural stress. Focus instead on realistic field-serviceability. How quickly can your technicians replace a broken track in a staging area? Fast-swap drive modules provide incredible tactical value. Modular repairability beats fictional indestructibility every time. Transparent Mean Time Between Failures (MTBF) data builds genuine vendor trust. We advise requesting failure logs from previous deployments.

Custom dimensions naturally extend delivery timelines. Tailored motor configurations or specialized track widths require unique fabrication. Supply chains for high-torque sealed motors face frequent delays. You should factor prototyping iterations into your master project schedule. Do not expect off-the-shelf delivery speeds for highly engineered bases. Rush orders often lead to skipped quality assurance steps. Allow ample time for factory acceptance testing.

Testing and validation must rely on empirical data. Demand concrete evidence of rigorous stress-testing. Dynamometer testing proves sustained motor torque claims. Thermal chamber data verifies heat resistance under maximum load. Incline load testing demonstrates structural stability on 40-degree slopes. CAD simulations alone provide insufficient proof. Real-world physical testing reveals the true mechanical limits of the drivetrain.

How to Shortlist Your Custom Tracked Robot Platform Provider

Follow this structured evaluation framework to select the most capable engineering partner. Proper vetting prevents costly deployment failures.

1. Step 1: Define the Non-Negotiables: Document exact minimum operational requirements. Specify the payload recoil absorption capacity you need. List the required obstacle height clearance and mandatory operational duration.
2. Step 2: Request Empirical Evidence: Ask for detailed technical case studies. Request raw video documentation of the platform operating under heavy loads. The robot must navigate relevant hazard environments, not flat warehouse floors.
3. Step 3: Evaluate Engineering Support: Assess the vendor's willingness to modify key architectural parameters. They should seamlessly adjust wheelbase, track width, or motor torque ratios. These modifications must match your specific proprietary payload demands.
4. Step 4: Pilot and Prototype: Initiate procurement cautiously. Buy a single evaluation unit first. Conduct rigorous in-house stress testing. Verify all vendor performance claims before committing to fleet-scale integration.

Conclusion

Selecting a purpose-built foundation is fundamentally an exercise in risk mitigation. A highly engineered platform ensures advanced R&D payloads actually reach the hazard zone intact. When the chassis performs flawlessly, operators can focus entirely on the rescue mission.

• Prioritize mechanical modularity to streamline future payload upgrades and sensor integrations.
• Insist on proven field mechanics, particularly dual swing-arms, for complex obstacle clearance.
• Demand transparent vendor engineering data over superficial aesthetic designs.
• Focus heavily on field-serviceability to reduce staging area downtime during live operations.

Consult with your core engineering teams to map exact payload and environmental constraints. Document these physical parameters thoroughly before requesting custom schematics from any manufacturer. A well-defined specification document serves as your best defense against inadequate hardware.

FAQ

Q: What is the minimum recommended payload capacity for a firefighting robot chassis?

A: The capacity heavily depends on the specific application. Scouting robots require less capacity. However, active suppression robots typically require a minimum of 150kg+. This higher threshold is necessary to handle heavy water monitors, drag pressurized fire hoses, and absorb the massive kinetic recoil generated during high-pressure water discharge.

Q: How do swing-arm tracked platforms improve rescue operations?

A: Swing-arms act as dynamic levers for the robot. They dynamically adjust the robot's center of gravity during complex maneuvers. They provide the necessary leverage to lift the main chassis over stairs, curbs, and structural debris. Standard flat tracks simply cannot clear these high-angle obstacles safely without flipping.

Q: Can these custom chassis integrate with our existing ROS-based navigation software?

A: Yes. High-quality developer platforms support ROS out-of-the-box. They offer open CAN bus and serial communication protocols. This open architecture allows your user-developed autonomous navigation algorithms to seamlessly send commands and directly control the drive motors without proprietary software bottlenecks.

Q: How do manufacturers protect the drive motors from high heat and water?

A: Manufacturers protect critical drivetrain components through hermetically sealed motor enclosures achieving IP67+ ratings. They utilize specialized thermal shielding materials and heat-resistant potting compounds. In high-intensity applications, they also integrate active internal cooling systems to prevent copper windings from melting during sustained operations.
