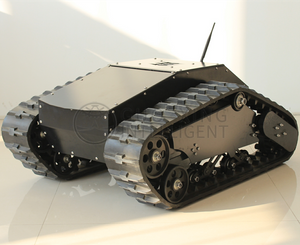

LKT1500
GUOXING
| Load Weight: | |
|---|---|
| Max Speed: | |
| Application: | |
| Quantity: | |
The LKT1500 supports up to 300kg payload, making it suitable for mounting sensors, industrial control units, robotic arms, cameras, detection equipment, firefighting modules or other special-purpose devices.
The tracked structure provides a large ground contact area and strong traction, allowing the chassis to move through soft, muddy, uneven and rugged environments.
The chassis supports 40° climbing and 220mm obstacle crossing, making it suitable for stairs, slopes, field paths and disaster rescue environments.
The chassis supports motion control through CAN BUS protocol, helping developers build customized operation modes and integrate upper-level control systems.
The body design leaves space for adding sensing devices, industrial computers, routing modules, cameras, brackets and other functional payloads. Customized sensor and AI profile brackets are also supported.
The carbon steel body, rubber track with Kevlar fiber and independent vibration absorbers improve durability and driving stability in demanding environments.
Patrol inspection robots
Exploration robots
Firefighting robot platforms
Rescue robots
EOD robots
Special shooting platforms
Special transportation robots
Industrial inspection and security robots
Customized unmanned ground vehicles
| Item | Specification |
| Model | LKT1500 |
| Dimensions | 1650 × 990 × 620mm |
| Self Weight | 500kg |
| Load Weight | 300kg |
| Operating Speed | 0–1.35m/s |
| Max Obstacle | 220mm |
| Max Climbing Angle | 40° |
| Body Material | Carbon steel |
| Track Material | Rubber track with Kevlar fiber |
| Suspension System | Christie suspension |
| Protection Grade | IP65, optional IP67 |
| Motor | 48V DC servo motor |
| Applications | Firefighting, EOD, patrol inspection, detection, rescue |
The LKT1500 is suitable for customers who need a reliable tracked mobile base but want to develop their own upper equipment and control functions. It reduces development difficulty, shortens project integration time and provides a stable platform for demanding robotic applications.
It is a tracked robot chassis platform designed for secondary development and customization.
The chassis supports a 300kg payload.
Yes. It is suitable for outdoor and complex terrain applications, including muddy, soft and uneven ground.
Yes. It supports CAN BUS protocol and can be customized with brackets, sensors, cameras and other upper-mounted equipment.
It can be used in firefighting, patrol inspection, rescue, EOD, exploration, industrial inspection and special transportation projects.
